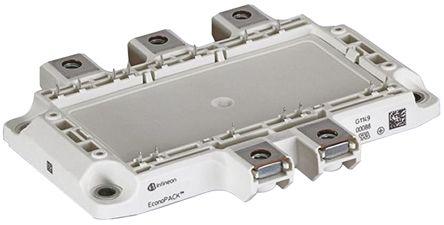

Infineon FS100R07PE4BOSA1, ECONO4 3 Phase Bridge IGBT Module, 100 A max, 650 V, PCB Mount

FS100R07PE4BOSA1 Infineon , ECONO4 3 Phase Bridge IGBT Module, 100 A max, 650 V, PCB Mount
Infineon

Product Information

Dimensions:
130 x 70.6 x 17mm
Mounting Type:
PCB Mount
Maximum Power Dissipation:
335 W
Maximum Continuous Collector Current:
100 A
Maximum Collector Emitter Voltage:
650 V
Configuration:
3 Phase Bridge
Height:
17mm
Width:
70.6mm
Length:
130mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
ECONO4
Minimum Operating Temperature:
-40 °C
Switching Speed:
1MHz
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
20
Transistor Configuration:
3 Phase
RoHs Compliant
Checking for live stock

This is ECONO4 3 Phase Bridge IGBT Module 100 A max 650 V PCB Mount manufactured by Infineon. The manufacturer part number is FS100R07PE4BOSA1. The given dimensions of the product include 130 x 70.6 x 17mm. The product is available in pcb mount configuration. Provides up to 335 w maximum power dissipation. The product has a maximum 100 a continuous collector current . Whereas features a 650 v of collector emitter voltage (max). The product is available in 3 phase bridge configuration. In addition, the height is 17mm. Furthermore, the product is 70.6mm wide. Its accurate length is 130mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of econo4. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 20 pins. The product offers 3 phase transistor configuration.

pdf icon
FS100R07PE4, IGBT-Module(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
