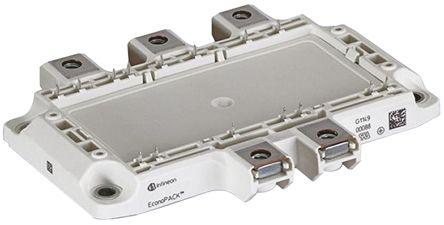

Infineon FS150R07PE4BOSA1, ECONO4 3 Phase Bridge IGBT Module, 150 A max, 650 V, PCB Mount

Enrgtech Part No: ET16792840
|
Manufacturer Part No:
FS150R07PE4BOSA1
|
Manufacturer: Infineon

FS150R07PE4BOSA1 Infineon , ECONO4 3 Phase Bridge IGBT Module, 150 A max, 650 V, PCB Mount

Product Information

Configuration:

3 Phase Bridge

Dimensions:

130 x 70.6 x 17mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

430 W

Maximum Continuous Collector Current:

150 A

Maximum Collector Emitter Voltage:

650 V

Height:

17mm

Width:

70.6mm

Length:

130mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

ECONO4

Minimum Operating Temperature:

-40 °C

Checking for live stock

The Infineon FS150R07PE4BOSA1 IGBT Module is a high-performance Infineon EconoPACK solution tailored for UK engineers and manufacturers navigating demanding power-conversion environments. Delivering 650 V voltage withstand, 150 A current capacity, and 430 W power dissipation in a compact chassis-mount design, this three-phase inverter module combines reliability, efficiency, and robust protection, from temperatures of –40 °C up to 150 °C.

Crucial Features and Benefits of Buying the Infineon 3 Phase Bridge IGBT Module, PCB Mount

Low switching and conduction losses enhance energy efficiency (low V<sub>CE(sat)</sub>).
Wide operating temperature range (–40 °C to 150 °C) ensures reliability in extreme UK environments.
Integrated NTC thermistor simplifies thermal management.
Compact, chassis-mount module suited for UK panel designs.
High voltage tolerance (650 V) and current capacity (150 A) ideal for robust industrial usage.

Broad Range Application

Three-phase inverters for UK industrial motor drives
Uninterruptible Power Supply (UPS) systems in commercial setups
Renewable energy converters (solar/wind inverters)
Industrial automation and control systems
Power conversion in HVAC and manufacturing equipment

FS150R07PE4, IGBT-Module(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
