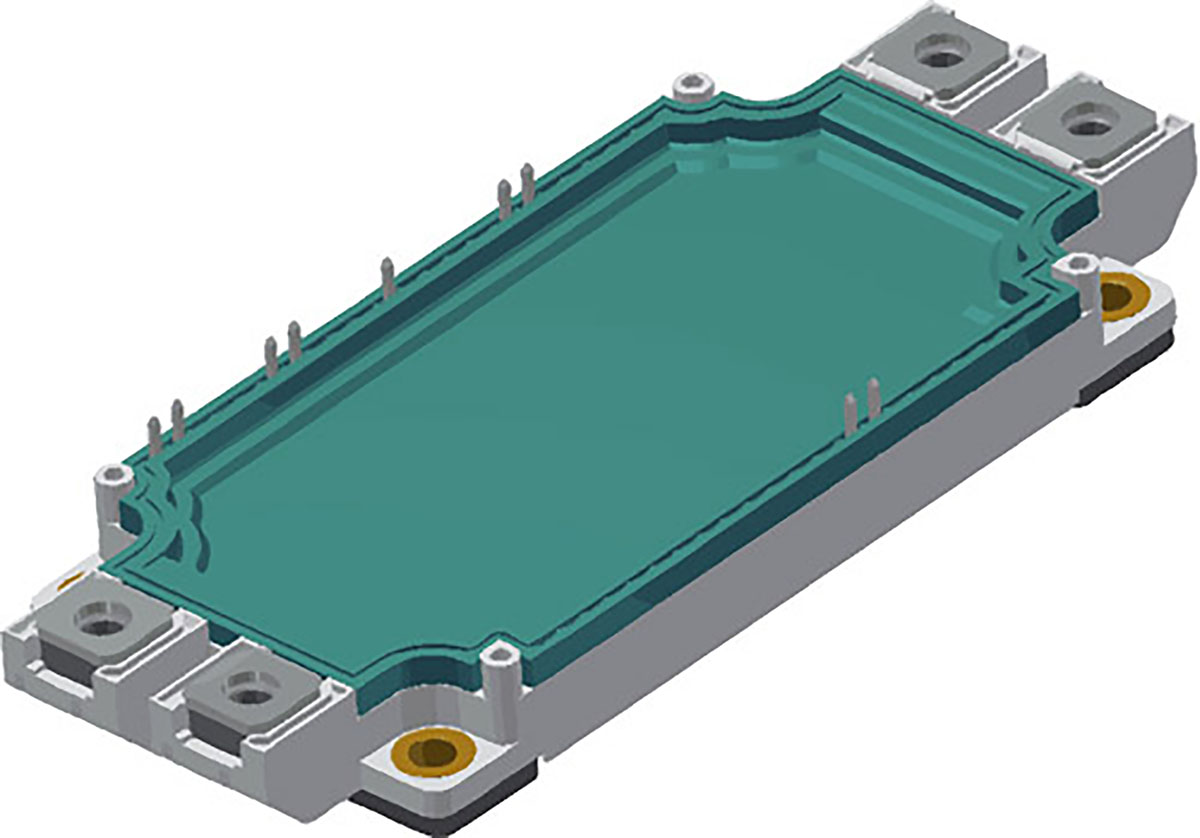

IXYS MIXA450PF1200TSF
Product Information
Dimensions:
152 x 62 x 17mm
Mounting Type:
PCB Mount
Maximum Power Dissipation:
2.1 kW
Maximum Collector Emitter Voltage:
1200 V
Channel Type:
N
Maximum Continuous Collector Current:
650 A
Maximum Gate Emitter Voltage:
±30V
Package Type:
SimBus F
Minimum Operating Temperature:
-40 °C
Configuration:
Dual
Maximum Operating Temperature:
+150 °C
Pin Count:
11
Transistor Configuration:
Series
Current - Collector (Ic) (Max):
650 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Vce(on) (Max) @ Vge, Ic:
2.15V @ 15V, 450A
Voltage - Collector Emitter Breakdown (Max):
1200 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
Module
Input:
Standard
NTC Thermistor:
Yes
REACH Status:
REACH Unaffected
Configuration:
Half Bridge
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
42 Weeks
IGBT Type:
PT
Current - Collector Cutoff (Max):
1 mA
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
Module
Power - Max:
2100 W
Base Product Number:
MIXA450
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MIXA450PF1200TSF on website for other similar products.
We accept all major payment methods for all products including ET10268484. Please check your shopping cart at the time of order.
You can order IXYS brand products with MIXA450PF1200TSF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBT Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IXYS MIXA450PF1200TSF. You can also check on our website or by contacting our customer support team for further order details on IXYS MIXA450PF1200TSF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10268484 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "IXYS" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10268484.
Yes. We ship MIXA450PF1200TSF Internationally to many countries around the world.
This is manufactured by IXYS. The manufacturer part number is MIXA450PF1200TSF. The given dimensions of the product include 152 x 62 x 17mm. The product is available in pcb mount configuration. Provides up to 2.1 kw maximum power dissipation. Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 650 a continuous collector current . It offers a maximum ±30v gate emitter voltage . The package is a sort of simbus f. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in dual configuration. It has a maximum operating temperature of +150 °c. It contains 11 pins. The product offers series transistor configuration. The maximum collector current includes 650 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.15v @ 15v, 450a. The maximum collector emitter breakdown voltage of the product is 1200 v. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in module. Its input values include standard. NTC Thermistor - yes. In addition, it is reach unaffected. The product is available in half bridge configuration. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 42 weeks standard lead time. Features an IGBT pt type. In addition, 1 ma is the maximum current at collector cutoff. The product is available in chassis mount configuration. module is the supplier device package value. The maximum power of the product is 2100 w. Moreover, it corresponds to mixa450, a base product number of the product. The product is designated with the ear99 code number.
