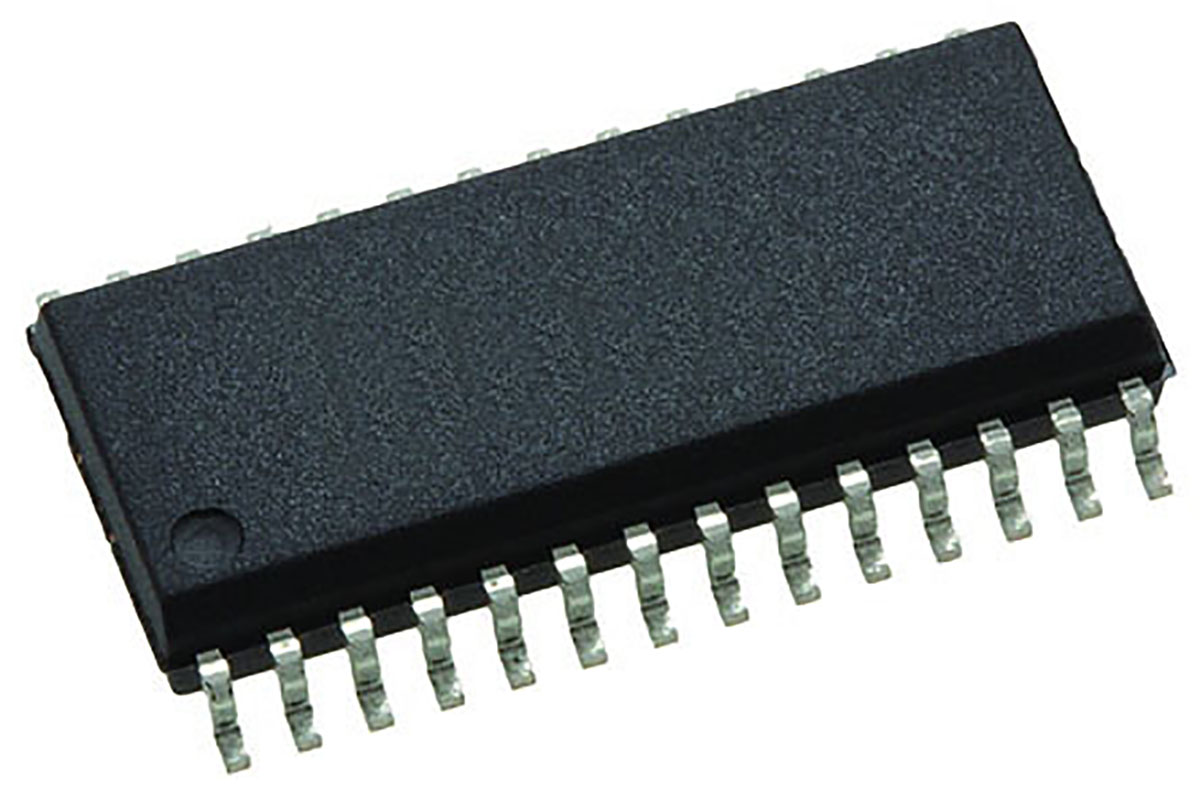

Microchip dsPIC33EP128GS702-I/SO dsPIC33EP, 16bit DSP 60MHz 128 kB Flash 28-Pin SOIC
Product Information
Dimensions:
17.9 x 7.5 x 2.35mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
7.5mm
Numeric and Arithmetic Format:
MAC
Program Memory Size:
128 kB
Number of PWM Units:
1
RAM Size:
8 kB
Automotive Standard:
AEC-Q100
ADC Channels:
11 (Analogue), 5 (S & H Circuit)
Number of Timers:
2
Data Bus Width:
16bit
Instruction Set Architecture:
DSP
Program Memory Type:
Flash
Package Type:
SOIC
Maximum Frequency:
60MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
PWM Resolution:
16bit
Minimum Operating Temperature:
-40 °C
ADC Resolution:
12bit
Timer Resolution:
16 bit, 32bit
Timers:
1(2 x 32 bit), 1(5 x 16 bit)
Device Million Instructions per Second:
70MIPS
Number of ADC Units:
2
Pin Count:
28
Pulse Width Modulation:
1(8 x 16 bit)
Mounting Type:
Surface Mount
Series:
dsPIC33EP
PWM Channels:
8
Length:
17.9mm
Number of Ethernet Channels:
0
Height:
2.35mm
Typical Operating Supply Voltage:
3 to 3.6 V
ADCs:
1(11 x 12 bit (Analogue)), 1(5 x 12 bit (S & H Circuit))
Number of CAN Channels:
0
Number of SPI Channels:
3
Checking for live stock
FAQs
Yes. You can also search dsPIC33EP128GS702-I/SO on website for other similar products.
We accept all major payment methods for all products including ET16766204. Please check your shopping cart at the time of order.
You can order Microchip brand products with dsPIC33EP128GS702-I/SO directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital Signal Processors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microchip dsPIC33EP128GS702-I/SO dsPIC33EP, 16bit DSP 60MHz 128 kB Flash 28-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Microchip dsPIC33EP128GS702-I/SO dsPIC33EP, 16bit DSP 60MHz 128 kB Flash 28-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16766204 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16766204.
Yes. We ship dsPIC33EP128GS702-I/SO Internationally to many countries around the world.
This is dsPIC33EP 16bit DSP 60MHz 128 kB Flash 28-Pin SOIC manufactured by Microchip. The manufacturer part number is dsPIC33EP128GS702-I/SO. The given dimensions of the product include 17.9 x 7.5 x 2.35mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 7.5mm wide. It has a/an mac numeric and arithmetic format . In addition, 128 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 8 kb RAM size. The product complies with automotive standard - aec-q100. Additionally, it is composed of 11 (analogue), 5 (s & h circuit) ADC channels. It comprises 2 timers. Moreover, the data bus width includes 16bit. The instruction set has dsp architecture. It is a flash program memory type. The package is a sort of soic. It features 60mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Moreover, the product is created with 16bit PMW resolution . Whereas, the minimum operating temperature of the product is -40 °c. The ADC has 12bit resolution. The timer has 16 bit, 32bit resolution. Timers options include 1(2 x 32 bit), 1(5 x 16 bit). It has a 70mips device million instructions per second . It contains 2 ADC units. It contains 28 pins. The product carries 1(8 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. The product dspic33ep, is a highly preferred choice for users. It includes 8 PWM channels . Its accurate length is 17.9mm. It contains 0 dedicated ethernet channels . In addition, the height is 2.35mm. It has 3 to 3.6 v of typical operating supply voltage. The ADCs included 1(11 x 12 bit (analogue)), 1(5 x 12 bit (s & h circuit)). Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 3 SPI channels.
