Manufacturer : TE Connectivity
Manufacturer Part No : 3-794122-1
Enrgtech Part No : ET13814420
Product Range : PolySwitch RXEF Series

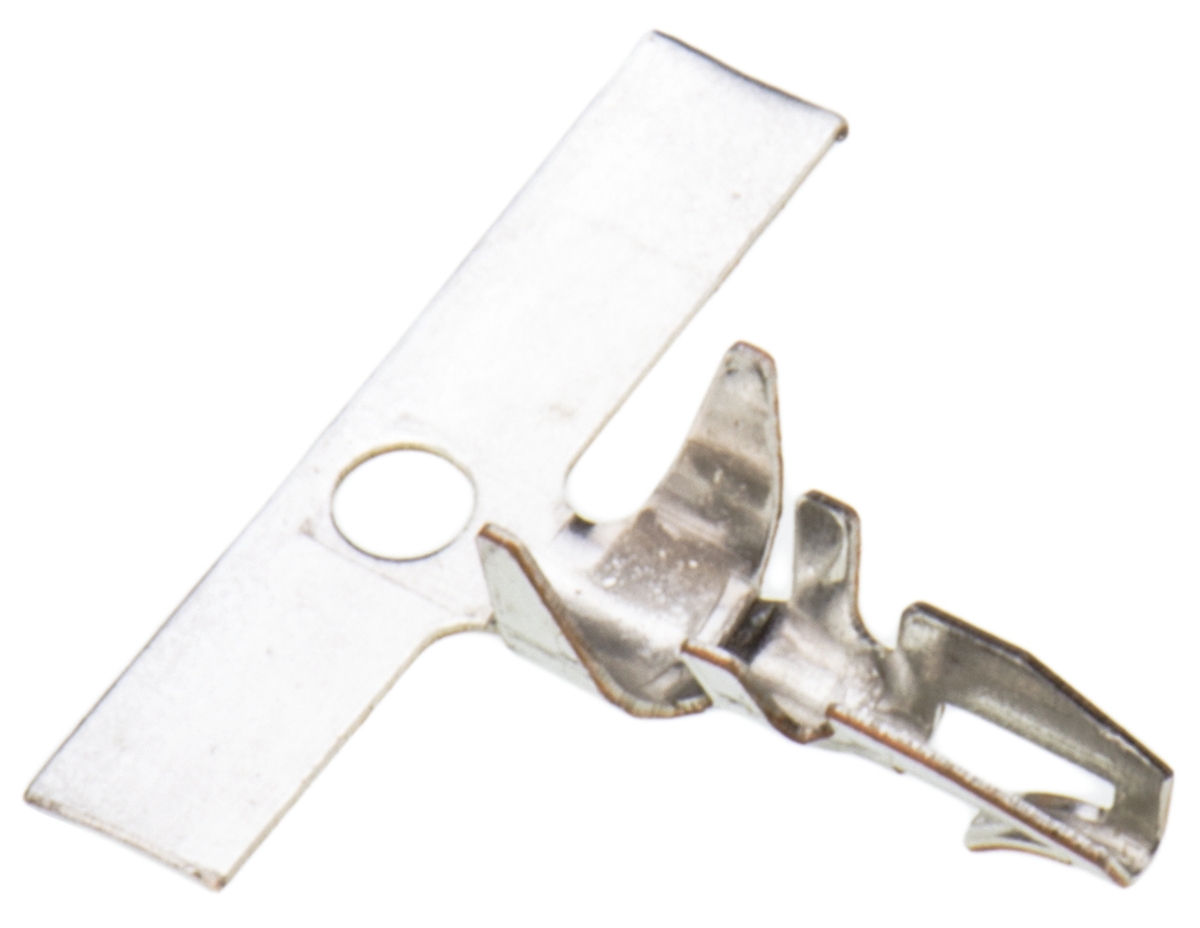

TE Connectivity AMP-IN Crimp Contact, Male, 0.1mm² to 0.4mm², 26AWG to 22AWG, Tin Plating

TE Connectivity Miniature AMP-IN Terminals These Miniature AMP-IN terminals are designed as mechanical holding devices to enhance the soldering of hookup wires to the PCB. This design eliminates the need for costly manual wire preparation. The wire is accurately positioned and held in place by the AMP-IN terminals to assure proper solder flow and reliable solder joints. A terminal locking lance holds the wire securely in the PCB and insulation support provides strain relief and protects the solder joint. With a low profile height above PCB these AMP-IN terminals offer space saving and design flexibility TE Connectivity Discrete PCB Connections

Product Information

Series : AMP-IN
Maximum Wire Size mm² : 0.4mm²
Gender : Male
Minimum Wire Size AWG : 26AWG
Contact Plating : Tin
Termination Method : Crimp
Maximum Wire Size AWG : 22AWG
Minimum Wire Size mm² : 0.1mm²
rohs : RoHS Certificate of Compliance
Contact Material : Phosphor Bronze

Technical Documents

  • Contact pcb type A 26-22AWG Mini Amp-In (Technical Reference)

Availability:
12000
in stock
Check now

Rate:
  • 6000
    +
    £ 0.033

Qty:
