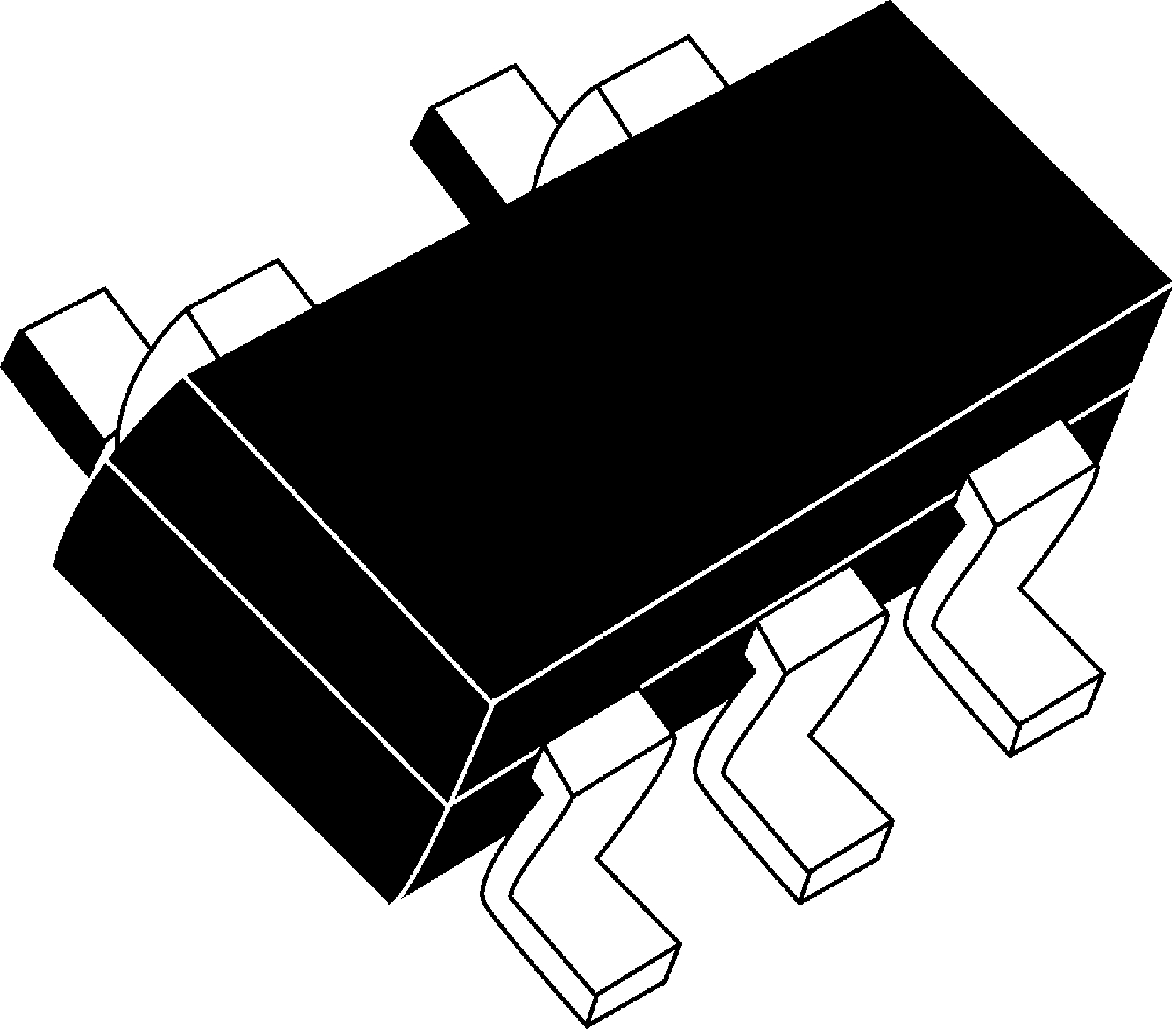

DiodesZetex 74AHC1G125W5-7 Non-Inverting Schmitt Trigger 3-State Buffer, 2 → 5.5 V, 5-Pin SOT-25

74AHC1G125W5-7 DiodesZetex Non-Inverting Schmitt Trigger 3-State Buffer, 2 → 5.5 V, 5-Pin SOT-25
74AHC1G125W5-7 DiodesZetex Non-Inverting Schmitt Trigger 3-State Buffer, 2 → 5.5 V, 5-Pin SOT-25
DiodesZetex

Product Information

Polarity:
Non-Inverting
Maximum Low Level Output Current:
8mA
Minimum Operating Temperature:
-40°C
Logic Function:
Buffer
Output Type:
3 State
Height:
1.3mm
Width:
1.7 mm
Length:
3.1mm
Package Type:
SOT-25
Logic Family:
74AHC
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Number of Channels:
1
Product Type:
Buffer
Maximum Operating Temperature:
125°C
Pin Count:
5
Maximum High Level Output Current:
-8mA
RoHs Compliant
Checking for live stock

This is Non-Inverting Schmitt Trigger 3-State Buffer 2 → 5.5 V 5-Pin SOT-25 manufactured by DiodesZetex. The manufacturer part number is 74AHC1G125W5-7. While providing non-inverting polarity. On the other hand, it is featured with 8ma of max. low level output current. Whereas, the minimum operating temperature of the product is -40°c. The primary function of logic includes buffer. Furthermore, it has a3 state output. In addition, the height is 1.3mm. Furthermore, the product is 1.7 mm wide. Its accurate length is 3.1mm. The package is a sort of sot-25. The logic family is 74ahc. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It is supplied with 1 channels. buffer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. It contains 5 pins. While a -8ma of maximum high level output current.

pdf icon
Single Buffer Gate With 3-State Output Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
