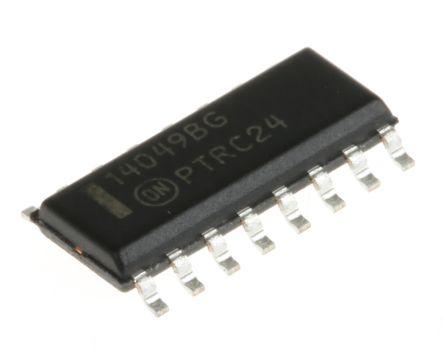

ON Semiconductor MC14049BDG, Hex Inverting Buffer, 16-Pin SOIC
Product Information
Polarity:
Inverting
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
140 ns @ 5 V
Minimum Operating Supply Voltage:
3 V
Minimum Operating Temperature:
-55 °C
Logic Function:
Buffer, Converter
Logic Family:
4000
Height:
1.5mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Propagation Delay Test Condition:
50pF
Input Type:
Single Ended
Schmitt Trigger Input:
No
Number of Channels:
6
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Maximum Operating Supply Voltage:
18 V
Checking for live stock
FAQs
Yes. You can also search MC14049BDG on website for other similar products.
We accept all major payment methods for all products including ET16727354. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with MC14049BDG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Buffers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor MC14049BDG, Hex Inverting Buffer, 16-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor MC14049BDG, Hex Inverting Buffer, 16-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16727354 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16727354.
Yes. We ship MC14049BDG Internationally to many countries around the world.
This is Hex Inverting Buffer 16-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC14049BDG. While providing inverting polarity. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. It provides up to 140 ns @ 5 v maximum propagation delay time. While its minimum operating supply voltage is 3 v. Whereas, the minimum operating temperature of the product is -55 °c. The primary function of logic includes buffer, converter. The logic family is 4000. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. The package is a sort of soic. Features 50pf of propagation delay test condition. It carries single ended input type. Schmitt Trigger Input - no. It is supplied with 6 channels. It has a maximum operating temperature of +125 °c. It contains 16 pins. It has 18 v maximum operating supply voltage.
