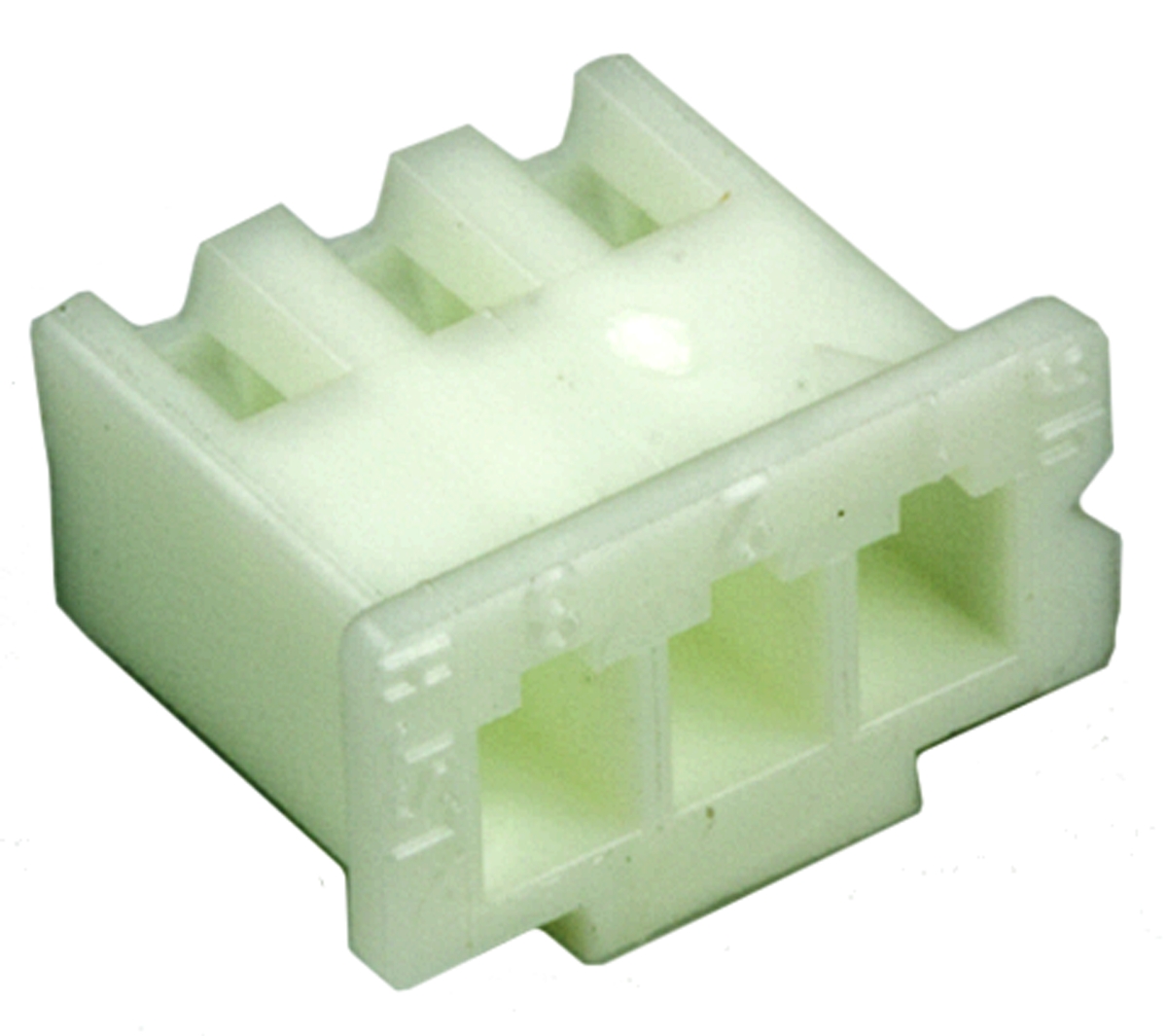

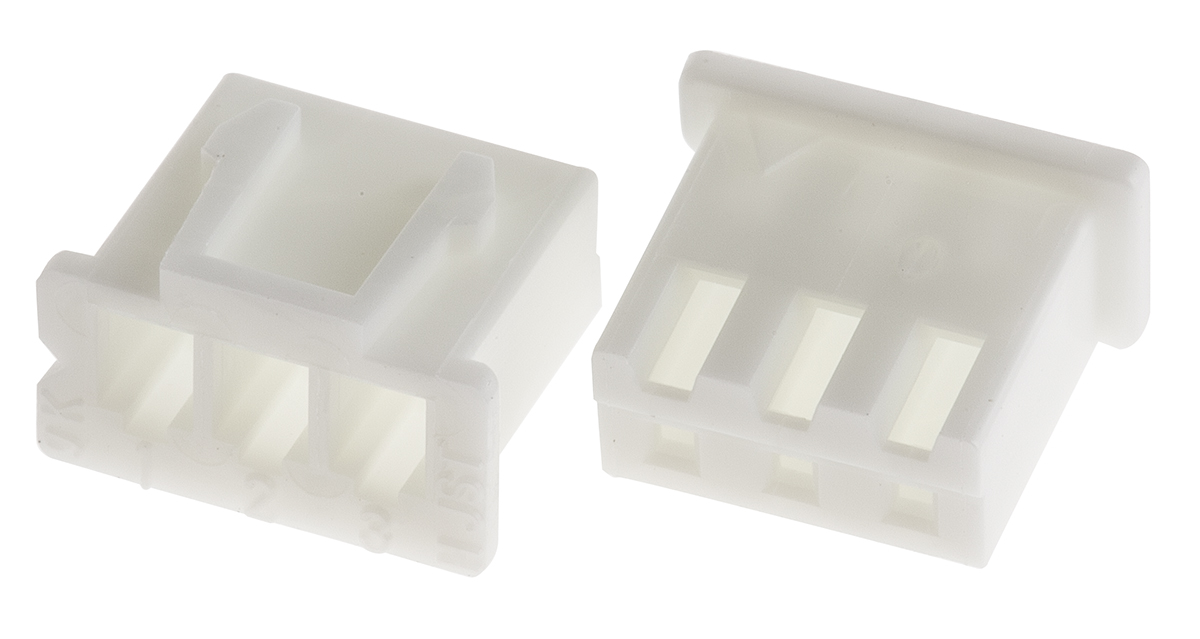

JST XHP-3, 2.5mm Pitch, 3 Way, 1 Row Female Connector Housing

Enrgtech Part No: ET14011465
|
Manufacturer Part No:
XHP-3
|
Manufacturer: JST

XHP-3 JST , 2.5mm Pitch, 3 Way, 1 Row Female Connector Housing

Product Information

Mounting Type:

Cable Mount

Gender:

Female

Body Orientation:

Straight

Pitch:

2.5mm

Housing Material:

Polyamide

Width:

5.7mm

Length:

9.8mm

Number of Rows:

Series:

XHP

For Use With:

XH Series Dis-Connectable Crimp Style Connector

Number of Contacts:

Checking for live stock

The JST XHP-3 is a versatile 2.5mm pitch, 3-way, 1-row female connector housing that plays a crucial role in electrical and electronic connections. This compact yet powerful component is essential in various industries, including automotive, consumer electronics, and industrial applications.

Key Features of the Female Connector

The XHP-3 boasts a 2.5mm pitch, which refers to the distance between the centre of one contact and the centre of the adjacent contact. This pitch size is ideal for applications where space is limited.
This connector housing accommodates three contacts or pins, making it suitable for simple connections where only three conductors must be joined.
The connector housing has a single row, meaning the contacts are aligned straight. This design simplifies assembly and reduces the overall footprint of the connector.

The JST XHP-3, 2.5mm Pitch, 3 Way, 1 Row Female Connector Housing: Application Versatility

The JST XHP-3, with its 2.5mm pitch, 3-way, 1-row female connector housing, is a dependable and versatile component utilised across industries, including:

Automotive Electronics: The XHP-3 connector housing is typically employed in automotive applications, such as connecting sensors, switches, and lighting components. Its robust design makes it suitable for the demanding automotive environment.
Consumer Electronics: In consumer electronics, this connector housing finds its place in devices like laptops, cameras, and audio equipment. Its compact size is perfect for compact and portable gadgets.
Industrial Equipment: Industrial machinery and equipment often rely on connectors like the XHP-3 for interconnecting various components, ensuring efficient and reliable operation.
Power Supplies: This connector housing is suitable for power supply connections, providing a safe and secure way to link power sources to electronic devices.

Significant Benefits

Reliability: JST connectors are renowned for their high reliability. The XHP-3 is no exception, ensuring stable and long-lasting connections in critical applications.
Easy Assembly: Its one-row design simplifies the assembly process, reducing the likelihood of errors during installation.
Durable Construction: Built to withstand harsh conditions, the XHP-3 is resistant to vibrations, moisture, and temperature extremes, making it suitable for various environments.
Versatility: With its 3-way configuration, the XHP-3 is adaptable to various connection needs, providing flexibility in design and implementation.

XH Series 2.5mm Pitch Wire-to-Board Connectors - Catalogue Pages(Technical Reference)
