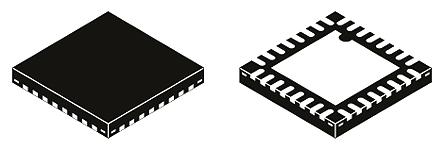

Linear Technology LTC3780IUH#PBF, 1, Buck Boost Controller Boost, Buck 3A, Adjustable, 440 kHz 32-Pin, QFN

LTC3780IUH-PBF Linear Technology LTC3780IUH#PBF, 1, Buck Boost Controller Boost, Buck 3A, Adjustable, 440 kHz 32-Pin, QFN
Analog Devices

Product Information

Dimensions:
5 x 5 x 0.7mm
Regulator Type:
Buck Boost Switching
Width:
5mm
Switching Regulator:
Yes
Load Regulation:
0.5 %
Output Type:
Adjustable
Maximum Switching Frequency:
440 kHz
Package Type:
QFN
Regulator Function:
Boost, Buck
Maximum Operating Temperature:
+125 °C
Number of Outputs:
1
Line Regulation:
0.02 %/V
Length:
5mm
Pin Count:
32
Mounting Type:
Surface Mount
Height:
0.7mm
Output Voltage:
0.8 → 30 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
3A
Maximum Input Voltage:
36 V
Minimum Input Voltage:
4 V
RoHs Compliant
Checking for live stock

This is Linear Technology 1 Buck Boost Controller Boost Buck 3A Adjustable 440 kHz 32-Pin QFN manufactured by Analog Devices. The manufacturer part number is LTC3780IUH#PBF. The given dimensions of the product include 5 x 5 x 0.7mm. The regulator is a type of buck boost switching regulator. Furthermore, the product is 5mm wide. It has a switching regulator yes . Load Regulation - 0.5 %. Furthermore, it has aadjustable output. It has a maximum 440 khz switching frequency. The package is a sort of qfn. It has a/an boost, buck function regulator . It has a maximum operating temperature of +125 °c. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.02 %/v. Its accurate length is 5mm. It contains 32 pins. The product is available in surface mount configuration. In addition, the height is 0.7mm. Features a 0.8 → 30 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 3a of maximum output current. 36 v is the maximum voltage of the bespoke product. The product has 4 v of minimum input voltage.
