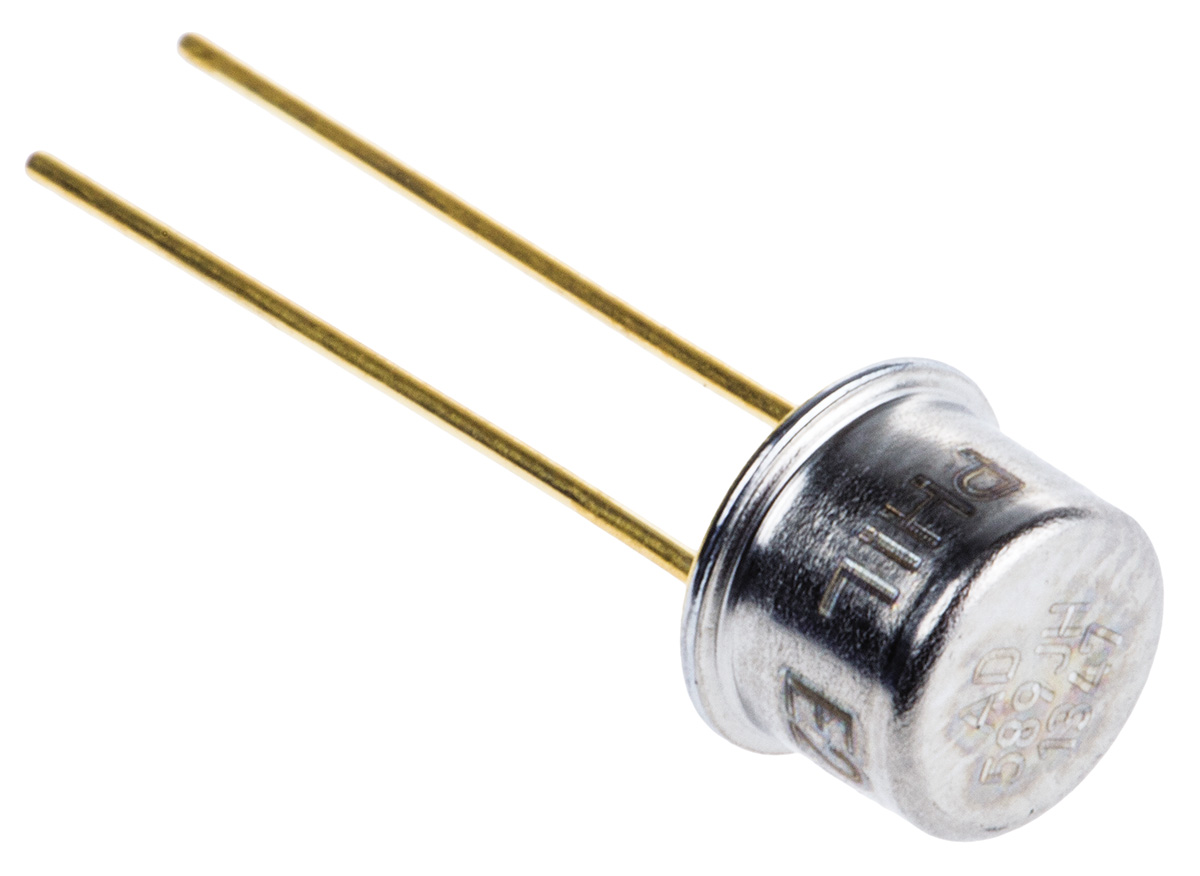

Analog Devices AD589JH, Fixed Shunt Voltage Reference 1.235V, ±1.2 % 2-Pin, TO-51

Enrgtech Part No: ET13948529
|
Manufacturer Part No:
AD589JH
|
Manufacturer: Analog Devices

AD589JH Analog Devices , Fixed Shunt Voltage Reference 1.235V, ±1.2 % 2-Pin, TO-51

Product Information

Load Regulation:

5 mV

Dimensions:

7 x 7 x 1mm

Mounting Type:

Through Hole

Maximum Operating Temperature:

+70 °C

Height:

1mm

Width:

7mm

Length:

7mm

Initial Accuracy:

±1.2 %

Package Type:

TO-51

Maximum Output Voltage:

1.25 V

Minimum Operating Temperature:

0 °C

Minimum Output Voltage:

1.2 V

Checking for live stock

This is Fixed Shunt Voltage Reference 1.235V ±1.2 % 2-Pin TO-51 manufactured by Analog Devices. The manufacturer part number is AD589JH. Load Regulation - 5 mv. The given dimensions of the product include 7 x 7 x 1mm. The product is available in through hole configuration. It has a maximum operating temperature of +70 °c. In addition, the height is 1mm. Furthermore, the product is 7mm wide. Its accurate length is 7mm. Its initial accuracy is approximately ±1.2 % . The package is a sort of to-51. Its output voltage (maximum) includes 1.25 v. Whereas, the minimum operating temperature of the product is 0 °c. The product features 1.2 v minimum output voltage. The nominal voltage of the product is 1.235v. The product has a reference of fixed type. Featuring 5ma of maximum output current. It contains 2 pins. Topology includes shunt.
