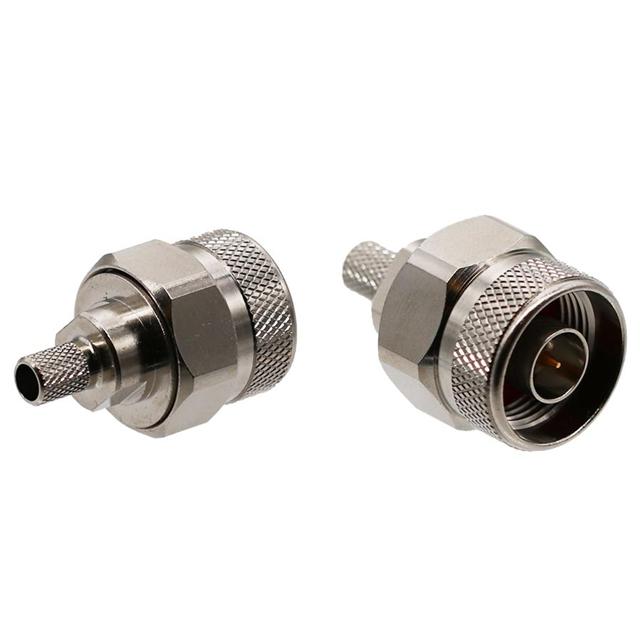

Cinch Connectivity Solutions Johnson 138-0414-001

138-0414-001 Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.1dB
standardLeadTime:
11 Weeks
Voltage Rating:
550 V
REACH Status:
REACH Unaffected
Includes:
-
Frequency - Max:
3 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
LMR-240
Package:
Bag
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp
Base Product Number:
138-0414
ECCN:
EAR99
Checking for live stock

This is manufactured by Cinch Connectivity Solutions Johnson. The manufacturer part number is 138-0414-001. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The phosphor bronze material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.1db of insertion loss. It has a long 11 weeks standard lead time. Moreover, the product has a nominal 550 v voltage rating. In addition, it is reach unaffected. It maximum frequency is 3 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: lmr-240. It is shipped in bag package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates crimp contact terminals. Moreover, it corresponds to 138-0414, a base product number of the product. The product is designated with the ear99 code number.
