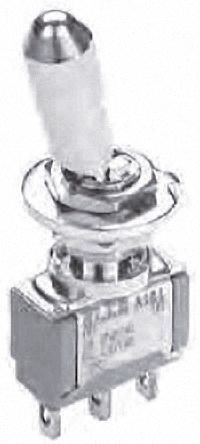

TE Connectivity SPDT Toggle Switch, On-On, PCB

1825136-7 TE Connectivity SPDT Toggle Switch, On-On, PCB
TE Connectivity

Product Information

Contact Resistance:
10mΩ
Actuator Length:
16.26mm
Mounting Type:
Panel Mount
Voltage Rating:
120 V ac, 28V dc
Contact Current Rating:
5 A @ 28 V dc
Contact Configuration:
SPDT
Actuator Material:
Phenolic
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +85°C
Switch Operation:
On-On
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Contact Material:
Silver Plated Copper
RoHs Compliant
Checking for live stock

This is SPDT Toggle Switch On-On PCB manufactured by TE Connectivity. The manufacturer part number is 1825136-7. It features a 10mω contact resistance. The actuator is a 16.26mm long. The product is available in panel mount configuration. Moreover, the product has a nominal 120 v ac, 28v dc voltage rating. The rated contact current is 5 a @ 28 v dc. The contact is equipped with spdt configuration. The actuator is designed from sturdy phenolic material. Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +85°c of operating temperature range. It provides on-on switch operation. It has a maximum operating temperature of +85°c. The terminal is a through hole type. The product is made from sturdy silver plated copper materials.

pdf icon
Gemini A Series Toggle Switch Single pole 2 Position Drawing(Technical Reference)
