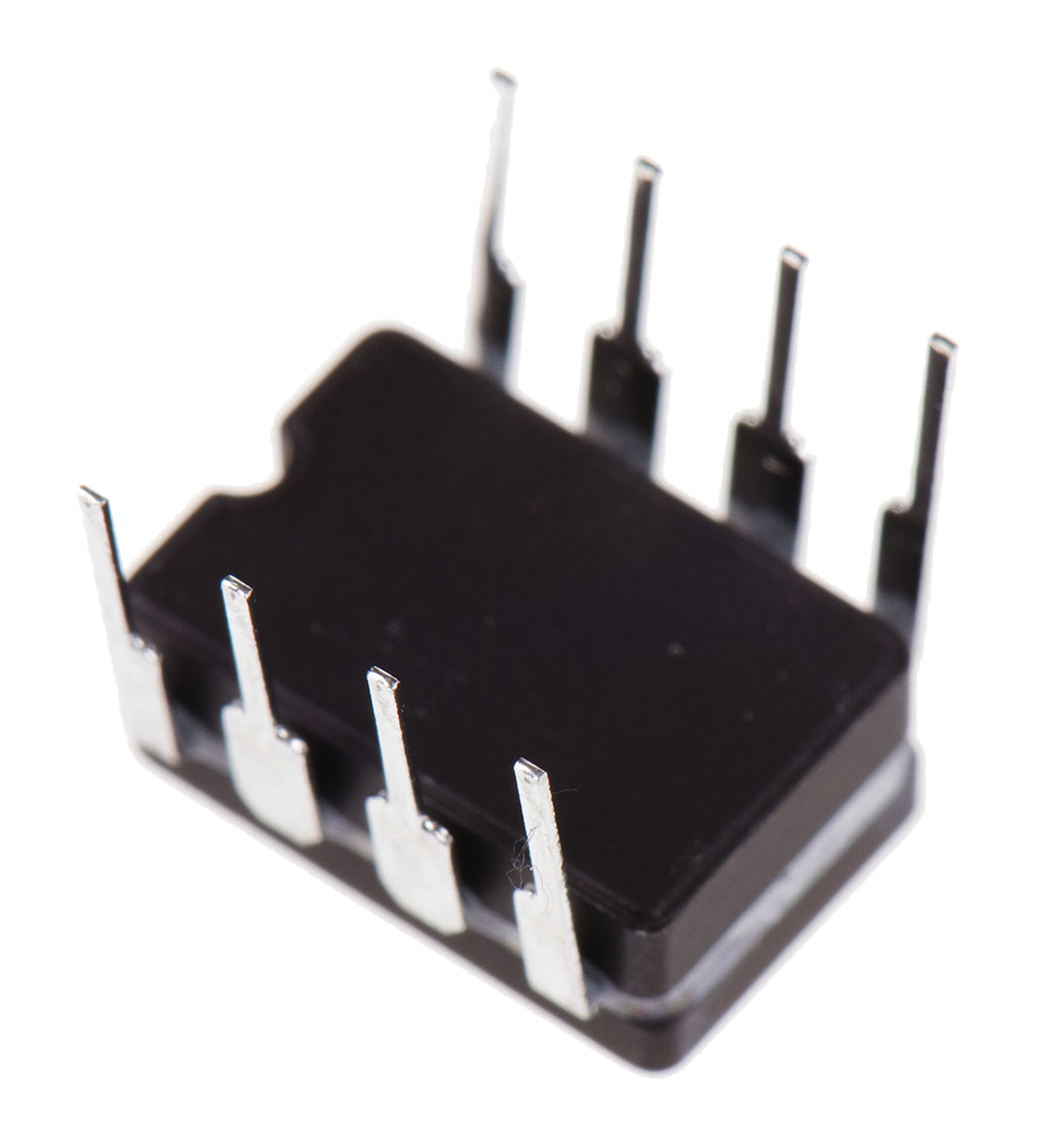

Texas Instruments TLC555MJG, Timer Circuit 2.1MHz, 2 → 15 V, 8-Pin CDIP
Product Information
Maximum Low Level Output Current:
-10mA
Timer Type:
Standard
Dimensions:
10.16 x 7.11 x 5.08mm
Mounting Type:
Through Hole
Maximum Quiescent Current:
350µA
Minimum Operating Supply Voltage:
2 V
Height:
5.08mm
Number of Internal Timers:
1
Width:
7.11mm
Length:
10.16mm
Maximum Input Frequency:
2.1MHz
Package Type:
CDIP
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
15 V
Maximum Operating Temperature:
+125 °C
Pin Count:
8
Maximum High Level Output Current:
100mA
Count:
-
Mounting Type:
Through Hole
Package:
Tube
Series:
-
RoHS Status:
ROHS3 Compliant
Current - Supply:
1 mA
Moisture Sensitivity Level (MSL):
Not Applicable
Supplier Device Package:
8-CDIP
Frequency:
2.1MHz
Voltage - Supply:
5V ~ 15V
Package / Case:
8-CDIP (0.300", 7.62mm)
Operating Temperature:
-55°C ~ 125°C (TA)
Type:
555 Type, Timer/Oscillator (Single)
Checking for live stock
FAQs
Yes. You can also search TLC555MJG on website for other similar products.
We accept all major payment methods for all products including ET14116385. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with TLC555MJG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Timer Circuits category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments TLC555MJG, Timer Circuit 2.1MHz, 2 → 15 V, 8-Pin CDIP. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments TLC555MJG, Timer Circuit 2.1MHz, 2 → 15 V, 8-Pin CDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14116385 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14116385.
Yes. We ship TLC555MJG Internationally to many countries around the world.
This is Timer Circuit 2.1MHz 2 → 15 V 8-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is TLC555MJG. On the other hand, it is featured with -10ma of max. low level output current. It includes a/an standard type timer . The given dimensions of the product include 10.16 x 7.11 x 5.08mm. The product is available in through hole configuration. It has a maximum 350µa quiescent current . While its minimum operating supply voltage is 2 v. In addition, the height is 5.08mm. Moreover, it has 1 internal timers included . Furthermore, the product is 7.11mm wide. Its accurate length is 10.16mm. The product has a maximum 2.1mhz input frequency . The package is a sort of cdip. Whereas, the minimum operating temperature of the product is -55 °c. It has 15 v maximum operating supply voltage. It has a maximum operating temperature of +125 °c. It contains 8 pins. While a 100ma of maximum high level output current. It is shipped in tube package . The product is rohs3 compliant. The current - supply of a bespoke product is 1 ma. Its typical moisture sensitivity level is not applicable. 8-cdip is the supplier device package value. Supplied with 2.1mhz of frequency. It has optimum voltage supply of 5v ~ 15v. Moreover, the product comes in 8-cdip (0.300", 7.62mm). The product has -55°c ~ 125°c (ta) operating temperature range. It comes in 555 type, timer/oscillator (single) configuration.
