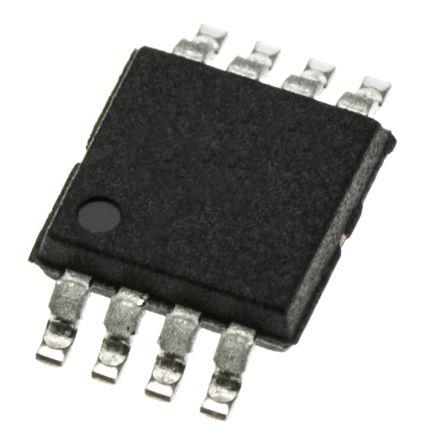

Maxim DS75U+, Thermostat -55 → +125 °C ±2°C Serial-2 Wire, 8-Pin μMax
Product Information
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Operating Temperature Range:
-55 to +125 °C
Maximum Operating Temperature:
+125 °C
Minimum Operating Supply Voltage:
2.7 V
Output Type:
Open Drain
Height:
0.95mm
Width:
3.1mm
Length:
3.1mm
Sensor Function:
Temperature
Package Type:
μMax
Interface Type:
Serial-2 Wire
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
5.5 V
Resolution:
12 bit
Pin Count:
8
Accuracy:
±2°C
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Sensing Temperature - Remote:
-
Operating Temperature:
-55°C ~ 125°C
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Accuracy - Highest (Lowest):
±2°C (±3°C)
Sensor Type:
Digital, Local
REACH Status:
REACH Unaffected
Output Type:
I²C
Test Condition:
-25°C ~ 100°C (-55°C ~ 125°C)
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Sensing Temperature - Local:
-55°C ~ 125°C
standardLeadTime:
52 Weeks
Resolution:
11 b
Features:
Output Switch, Programmable Limit, Programmable Resolution, Shutdown Mode, Standby Mode
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-uMAX-EP|8-uSOP-EP
Voltage - Supply:
2.7V ~ 5.5V
Base Product Number:
DS75
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DS75U+ on website for other similar products.
We accept all major payment methods for all products including ET18611384. Please check your shopping cart at the time of order.
You can order Maxim Integrated brand products with DS75U+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Temperature & Humidity Sensor ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim DS75U+, Thermostat -55 → +125 °C ±2°C Serial-2 Wire, 8-Pin μMax. You can also check on our website or by contacting our customer support team for further order details on Maxim DS75U+, Thermostat -55 → +125 °C ±2°C Serial-2 Wire, 8-Pin μMax.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18611384 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim Integrated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18611384.
Yes. We ship DS75U+ Internationally to many countries around the world.
This is Maxim Thermostat -55 → +125 °C ±2°C Serial-2 Wire 8-Pin μMax manufactured by Maxim Integrated. The manufacturer part number is DS75U+. The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. The product has -55 to +125 °c of operating temperature range. It has a maximum operating temperature of +125 °c. While its minimum operating supply voltage is 2.7 v. Furthermore, it has aopen drain output. In addition, the height is 0.95mm. Furthermore, the product is 3.1mm wide. Its accurate length is 3.1mm. Its sensor is for temperature function . The package is a sort of μmax. It is a type of serial-2 wire interface. Whereas, the minimum operating temperature of the product is -55 °c. It has 5.5 v maximum operating supply voltage. Features 12 bit resolution. It contains 8 pins. It provides high accuracy of ±2°c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in 8-tssop, 8-msop (0.118", 3.00mm width). While the highest and lowest accuracy level includes ±2°c (±3°c). These sensors are sort of digital, local. In addition, it is reach unaffected. Furthermore, it has ai²c output. Test condition included -25°c ~ 100°c (-55°c ~ 125°c). It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The local sensing temperature of the product is -55°c ~ 125°c. It has a long 52 weeks standard lead time. Features 11 b resolution. The splendid features of the product include output switch, programmable limit, programmable resolution, shutdown mode, standby mode. 8-umax-ep|8-usop-ep is the supplier device package value. It has optimum voltage supply of 2.7v ~ 5.5v. Moreover, it corresponds to ds75, a base product number of the product. The product is designated with the ear99 code number.
