Hazardous Area Certification:
global hazardous area ratings, Explosion proof operators, intended for use in potential explosive areas, Div 1, According to Directive ATEX 94/9/EC
Inlet Connection Type:
Threaded
Maximum Operating Pressure:
6.5 bar
Number of Ports:
2
Series:
E262
Servo Assist:
Yes
Inlet Thread Standard:
NPT
Maximum Opening Time:
25ms
Orifice Diameter:
5.6mm
Application:
Industrial Water Control, Pressure Filling Application, Laundry Equipment, Calibration Testing, Pumps, Hydrogen, Furnace Applications, Air Compressor, Gas Engine, Petroleum Vending, Component Testing, District Heating, Packaged Burner, Dust Collector System, Product Cycle Testing, Boiler Application, Car Wash
Body Material:
Brass
Standards/Approvals:
ISO/CETOP and ISO/VDMA Standards, Satisfies all relevant EC Directives, CE Approval According to Pressure Equipment Directive 2014/68/E modules B1+D, ATEX 94/9/EC
Supply Voltage:
24 V dc
Minimum Operating Temperature:
-25°C
Outlet Port Gender:
Female
Default Valve Position:
NC
Maximum Closing Time:
25ms

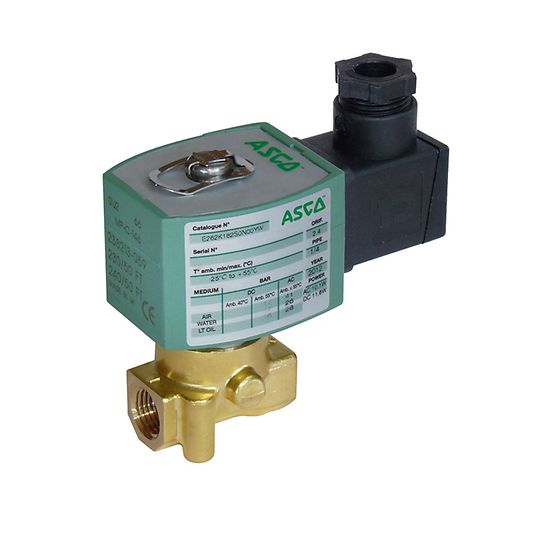

Product Type:
Solenoid Valve
Maximum Operating Temperature:
80°C
Inlet Port Gender:
Female
Inlet Port Size:
1/8 in (NPT Downstream pipe tap mentioned)
