Inlet Connection Type:
Threaded
Flow Factor Kv:
0.18m³/h
Application:
Industrial, Commercial Machinery, Dust Collector System, Combustion Solutions, Fuel Systems, Alternative Energy
Outlet Connection Type:
Threaded
Maximum Opening Time:
25ms
Inlet Port Size:
1/8 in
Maximum Operating Pressure:
16 bar
Servo Assist:
Yes
Inlet Port Gender:
Female
Maximum Closing Time:
25ms

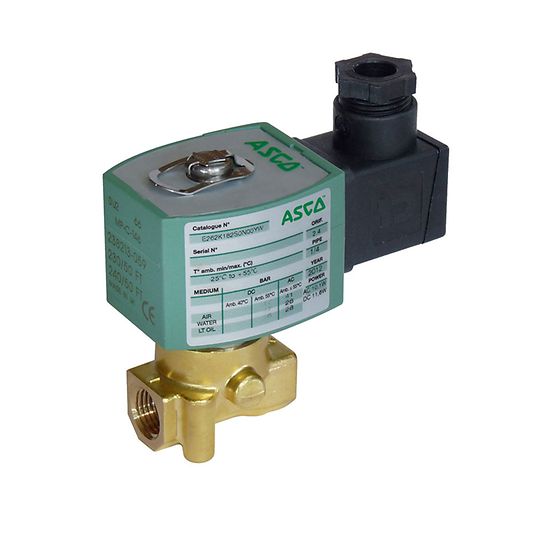

Product Type:
Solenoid Valve
Maximum Operating Temperature:
80°C
Outlet Port Gender:
Female
Hazardous Area Certification:
Div 1, According to Directive ATEX 94/9/EC, intended for use in potential explosive areas, Explosion proof operators
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
Satisfies all relevant EC Directives, CE Approval According to Pressure Equipment Directive 2014/68/E modules B1+D, ISO/CETOP and ISO/VDMA Standards, ATEX 94/9/EC
Default Valve Position:
NC
Series:
E262
Orifice Diameter:
2.4mm
Inlet Thread Standard:
NPT
Minimum Operating Temperature:
-25°C
Supply Voltage:
230 V
