Outlet Thread Standard:
ISO 228/1 & ISO 7/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
2.8L/min
Outlet Port Size:
3/4 in
Application:
Air, Inert Gas, Oil, Water
Outlet Connection Type:
Threaded
Maximum Opening Time:
25ms
Inlet Port Size:
3/4 in
Maximum Operating Pressure:
10 bar
Servo Assist:
No
Maximum Closing Time:
25ms

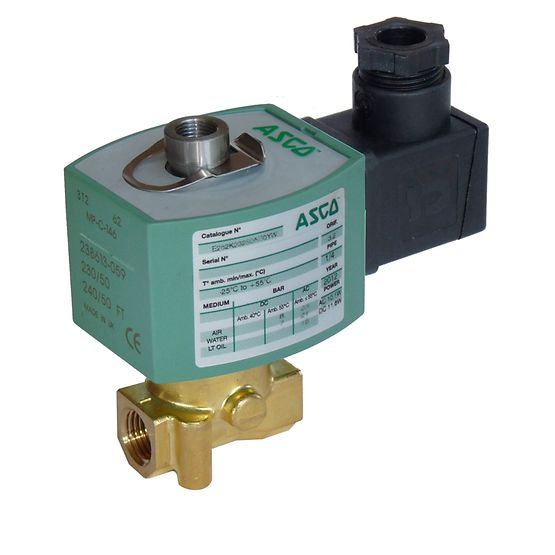

Product Type:
Solenoid Valve
Maximum Operating Temperature:
90°C
Hazardous Area Certification:
IECEx, UL, CSA, ATEX Directive 2014/34/EU
Number of Ports:
3
Body Material:
Brass
Standards/Approvals:
EN 60529, EN 175301-803, ISO 4400, CSA, UL, RoHS, ATEX Directive 2014/34/EU, IEC 335
Default Valve Position:
NC
Series:
314
Orifice Diameter:
2.4mm
Inlet Thread Standard:
ISO 228/1 & ISO 7/1
Minimum Operating Temperature:
-25°C
Supply Voltage:
48 V
