Outlet Thread Standard:
ISO 228/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
322L/min
Outlet Port Size:
Rp 1-1/2
Application:
Water, Inert Gas, Air, Oil
Outlet Connection Type:
Threaded
Maximum Opening Time:
10ms
Inlet Port Size:
1-1/2 in
Servo Assist:
No
Inlet Port Gender:
Female

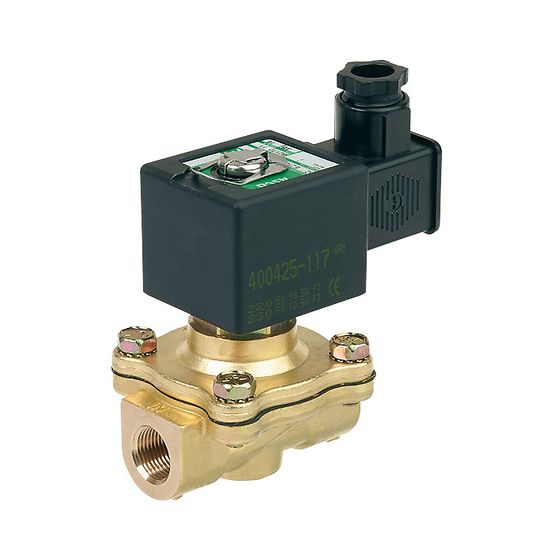

Product Type:
Solenoid Valve
Maximum Operating Temperature:
85°C
Outlet Port Gender:
Female
Hazardous Area Certification:
UL, CE, MD 174,2004, CEI 60335, NSF
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
NEMA, ISO 4400 / EN 175301-803, CSA, IEC 335, EN 60529, form A, Pressure Equipment Directive 2014/68/EU, UL
Default Valve Position:
NC
Series:
210
Orifice Diameter:
32mm
Inlet Thread Standard:
ISO 228/1
Minimum Operating Temperature:
-20°C
Supply Voltage:
115 V
