Outlet Thread Standard:
ISO 7.1
Inlet Connection Type:
Rp ISO 7/1
Flow Factor Kv:
322L/min
Outlet Port Size:
Rp 1-1/2
Application:
Water, Inert Gas, Oil, Air
Outlet Connection Type:
Pipe
Inlet Port Gender:
Female
Inlet Port Size:
1-1/2 in
Servo Assist:
No

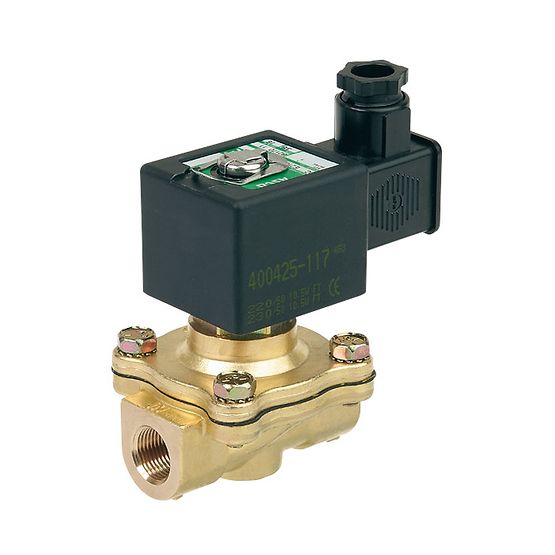

Product Type:
Solenoid Valve
Maximum Operating Temperature:
85°C
Outlet Port Gender:
Female
Hazardous Area Certification:
CE, NSF, MD 174,2004, CEI 60335, UL
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
EN 60529, ISO 4400 / EN 175301-803, Pressure Equipment Directive 2014/68/EU, form A, CSA, IEC 335, NEMA, UL
Default Valve Position:
NC
Series:
210
Orifice Diameter:
32mm
Inlet Thread Standard:
ISO 7.1
Minimum Operating Temperature:
-20°C
Supply Voltage:
24 V
