Outlet Thread Standard:
ISO 7.1
Inlet Connection Type:
Rp ISO 7/1
Flow Factor Kv:
322L/min
Outlet Port Size:
Rp 1-1/2
Application:
Air, Oil, Water, Inert Gas
Outlet Connection Type:
Rp (ISO 7/1)
Inlet Port Gender:
Female
Inlet Port Size:
1-1/2 in
Servo Assist:
No

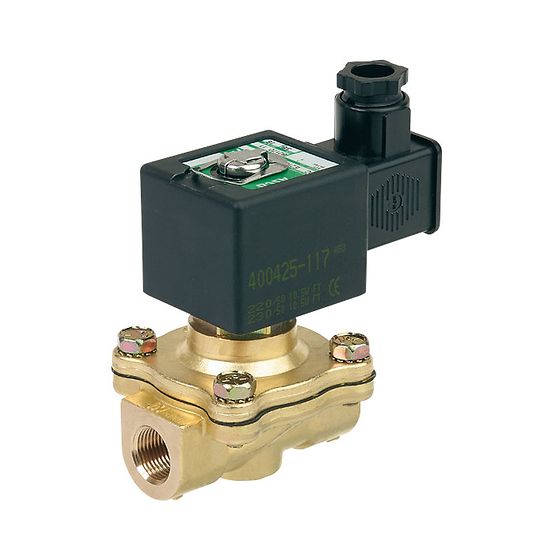

Product Type:
Solenoid Valve
Maximum Operating Temperature:
85°C
Outlet Port Gender:
Female
Hazardous Area Certification:
NSF, UL, CEI 60335, CE, MD 174,2004
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
form A, NEMA, CSA, IEC 335, EN 60529, Pressure Equipment Directive 2014/68/EU, ISO 4400 / EN 175301-803, UL
Default Valve Position:
NC
Series:
210
Orifice Diameter:
32mm
Inlet Thread Standard:
ISO 7.1
Minimum Operating Temperature:
-20°C
Supply Voltage:
48 V
