Outlet Thread Standard:
ISO 228/1 and ISO 7/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
12.7L/min
Outlet Port Size:
1/4 in
Application:
Industrial Water Control, Pumps, Car Wash, Laundry Equipment, Air Compressor
Outlet Connection Type:
Threaded
Maximum Opening Time:
5ms
Inlet Port Size:
1/4 in
Maximum Operating Pressure:
1.6 bar
Servo Assist:
No
Inlet Port Gender:
Male
Maximum Closing Time:
25ms

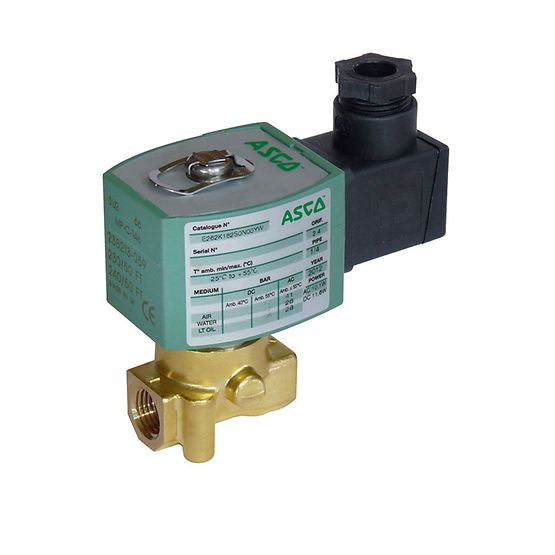

Product Type:
Solenoid Valve
Maximum Operating Temperature:
80°C
Outlet Port Gender:
Male
Hazardous Area Certification:
Zone, Zone 22, IECEx, ATEX
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
CSA, form A, IEC 335, WRAS, EN 60529, ISO 4400 / EN 175301-803, RoHS, UL
Default Valve Position:
NO
Series:
262
Orifice Diameter:
7.1mm
Inlet Thread Standard:
ISO 228/1 and ISO 7/1
Minimum Operating Temperature:
-25°C
Supply Voltage:
24 V
