Outlet Thread Standard:
ISO 228/1 and ISO 7/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
5L/min
Outlet Port Size:
1/4 in
Application:
Air, Inert Gas, Oil, Water
Outlet Connection Type:
Threaded
Maximum Opening Time:
5ms
Inlet Port Size:
1/4 in
Maximum Operating Pressure:
12 bar
Servo Assist:
No
Inlet Port Gender:
Male
Maximum Closing Time:
25ms

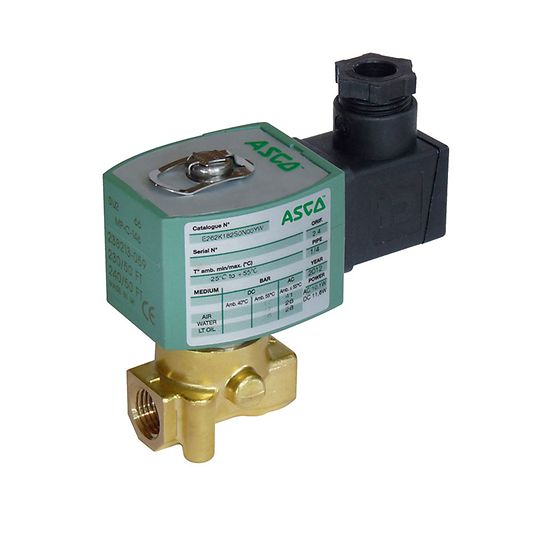

Product Type:
Solenoid Valve
Maximum Operating Temperature:
80°C
Outlet Port Gender:
Male
Hazardous Area Certification:
ATEX Directive 2014/34/EU, UL, IECEx, CSA
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
UL, WRAS, EN 175301-803, EN 60529, CSA, ISO 4400, RoHS, IEC 335
Default Valve Position:
NC
Series:
262
Orifice Diameter:
3.2mm
Inlet Thread Standard:
ISO 228/1 and ISO 7/1
Minimum Operating Temperature:
-25°C
Supply Voltage:
24 V
