Outlet Thread Standard:
ISO 228/1 and ISO 7/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
3L/min
Outlet Port Size:
1/4 in
Application:
Pumps, Air Compressor, Industrial Water Control, Car Wash, Laundry Equipment
Outlet Connection Type:
Threaded
Maximum Opening Time:
5ms
Inlet Port Size:
1/4 in
Maximum Operating Pressure:
14 bar
Servo Assist:
No
Inlet Port Gender:
Male
Maximum Closing Time:
25ms

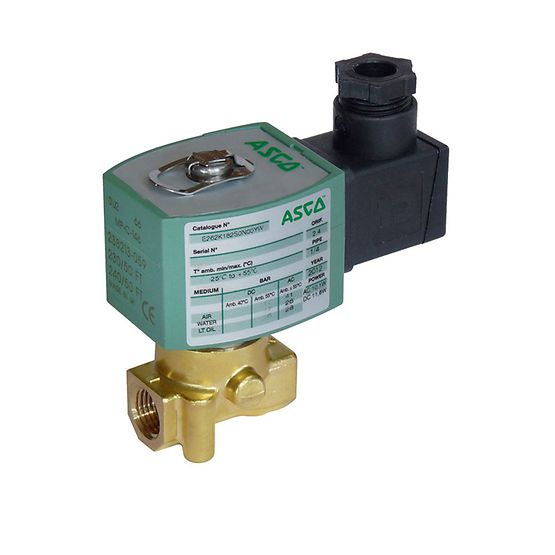

Product Type:
Solenoid Valve
Maximum Operating Temperature:
80°C
Outlet Port Gender:
Male
Hazardous Area Certification:
IECEx, ATEX Directive 2014/34/EU, UL, CSA
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
EN 175301-803, RoHS, CSA, UL, WRAS, IEC 335, EN 60529
Default Valve Position:
NC
Series:
262
Orifice Diameter:
2.4mm
Inlet Thread Standard:
ISO 228/1 and ISO 7/1
Minimum Operating Temperature:
-25°C
Supply Voltage:
24 V
