Outlet Thread Standard:
ISO 7.1
Inlet Connection Type:
Rp ISO 7/1
Flow Factor Kv:
57L/min
Outlet Port Size:
1/2 in
Application:
Oil, Air, Inert Gas, Water
Outlet Connection Type:
Threaded
Inlet Port Gender:
Female
Inlet Port Size:
1/2 in
Maximum Operating Pressure:
16 bar
Servo Assist:
No

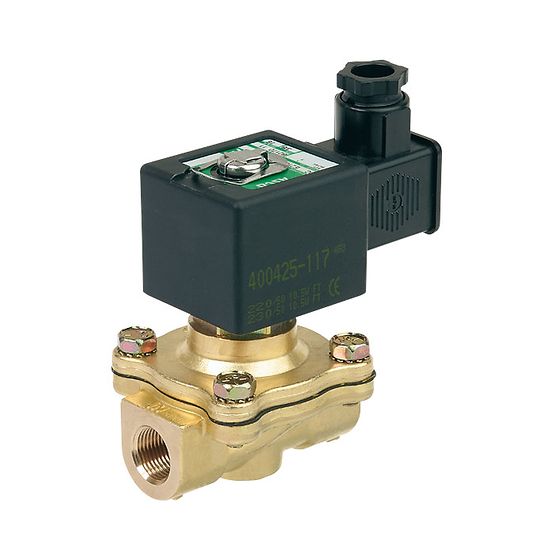

Product Type:
Solenoid Valve
Maximum Operating Temperature:
85°C
Outlet Port Gender:
Female
Hazardous Area Certification:
categories 2-3 to ATEX, Explosionproof enclosures for use in zones 1/21-2/22
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
UL, ATEX Directive 2014/34/EU, CSA, EN 60529 (IP65), form A, Pressure Equipment Directive 2014/68/EU, IEC 335, ISO 4400 / EN 175301-803, NEMA
Default Valve Position:
NC
Series:
210
Orifice Diameter:
16mm
Inlet Thread Standard:
Rp (ISO 7/1)
Minimum Operating Temperature:
-20°C
Supply Voltage:
48 V
