Outlet Thread Standard:
ISO 228/1 and ISO 7/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
10.5L/min
Outlet Port Size:
1/4 in
Application:
High Pressure Fluid
Outlet Connection Type:
Threaded
Maximum Opening Time:
5ms
Inlet Port Size:
1/4 in
Maximum Operating Pressure:
6.5 bar
Servo Assist:
No
Inlet Port Gender:
Male
Maximum Closing Time:
25ms

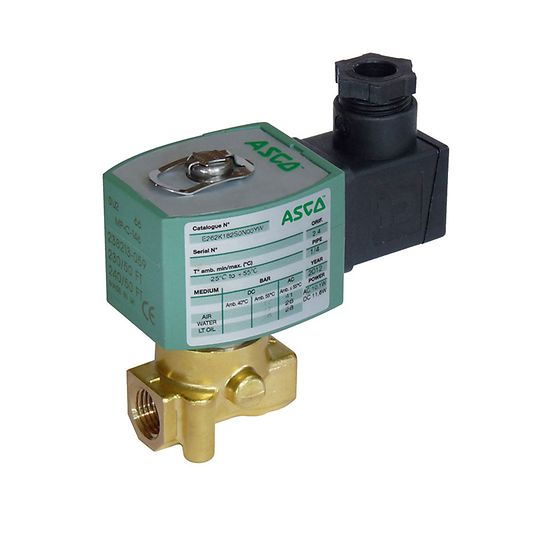

Product Type:
Solenoid Valve
Maximum Operating Temperature:
80°C
Outlet Port Gender:
Male
Hazardous Area Certification:
ATEX Directive 2014/34/EU, II 3GD Ex tc IIIC Dc, Zone 22, Zone, II 2D Ex tb IIIC Db, IECEx, II 3GD Ex ec IIC Gc, II 2G Ex db IIC Gb
Number of Ports:
2
Body Material:
Brass
Standards/Approvals:
form A, CSA, EN 60529, RoHS, WRAS (some versions), EU Directives, ISO 4400 / EN 175301-803, UL, IEC 335
Default Valve Position:
NC
Series:
262
Orifice Diameter:
5.6mm
Inlet Thread Standard:
ISO 228/1 and ISO 7/1
Minimum Operating Temperature:
-25°C
