Outlet Thread Standard:
ISO 228/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
1.2L/min
Outlet Port Size:
1/8 in
Application:
Valve Piloting Application
Outlet Connection Type:
Threaded
Maximum Opening Time:
5ms
Inlet Port Size:
1/8 in
Maximum Operating Pressure:
10 bar
Servo Assist:
No
Maximum Closing Time:
10ms

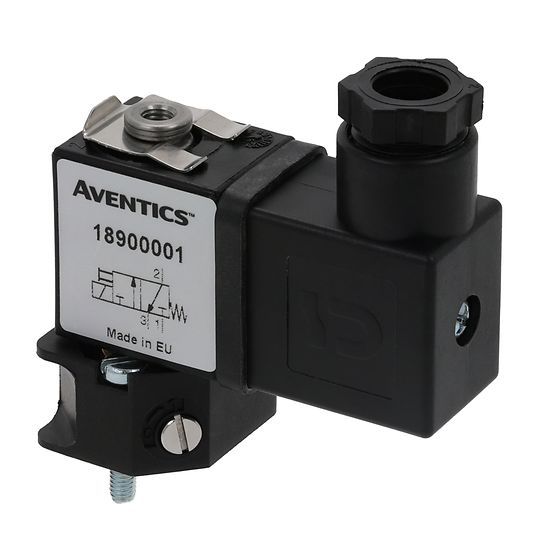

Product Type:
Solenoid Valve
Maximum Operating Temperature:
60°C
Hazardous Area Certification:
UL, PV18901001, Zone 22, ATEX, EU, CSA
Number of Ports:
3
Body Material:
Polyamide
Standards/Approvals:
UL, ATEX Directive 2014/34/EU, EN 60529, CSA, DIN 43650, IEC 335, ISO 15218 (CNOMO 06-05-80/NF E 49066,size 30)
Default Valve Position:
NC
Series:
189
Orifice Diameter:
1.2mm
Inlet Thread Standard:
ISO 228/1
Minimum Operating Temperature:
-10°C
Supply Voltage:
115 V
