Outlet Thread Standard:
ISO 228/1
Inlet Connection Type:
Threaded
Flow Factor Kv:
1.2L/min
Outlet Port Size:
M5
Application:
Valve Piloting Application
Outlet Connection Type:
Threaded
Maximum Opening Time:
5ms
Inlet Port Size:
M5
Maximum Operating Pressure:
10 bar
Servo Assist:
No
Maximum Closing Time:
10ms

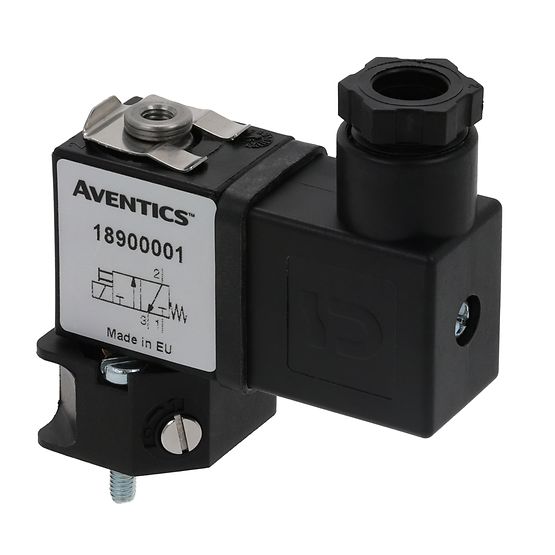

Product Type:
Solenoid Valve
Maximum Operating Temperature:
60°C
Hazardous Area Certification:
CSA, EU, ATEX, PV18901001, Zone 22, UL
Number of Ports:
3
Body Material:
Polyamide
Standards/Approvals:
ATEX Directive 2014/34/EU, UL, EN 60529, DIN 43650, ISO 15218 (CNOMO 06-05-80/NF E 49066,size 30), IEC 335, CSA
Default Valve Position:
NC
Series:
189
Orifice Diameter:
1.2mm
Inlet Thread Standard:
ISO 228/1
Minimum Operating Temperature:
-10°C
Supply Voltage:
120 V
