HydraForce Solenoid Valve SV10-22-3B-N-230AG, 2 port , NC, 220 V, 3/8

SV10-22-3B-N-230AG HydraForce Solenoid Valve , 2 port , NC, 220 V, 3/8
SV10-22-3B-N-230AG HydraForce Solenoid Valve , 2 port , NC, 220 V, 3/8
HydraForce

Product Information

Hazardous Area Certification:
No
Maximum Operating Pressure:
240 bar
Flow Factor Kv:
56.8L/min
Number of Ports:
2
Series:
SV10-22
Outlet Port Size:
3/8 in
Orifice Diameter:
46.6mm
Application:
Load Holding, Low Leakage Blocking
Body Material:
Aluminium
Standards/Approvals:
No
Supply Voltage:
220 V ac
Minimum Operating Temperature:
-40°C
Default Valve Position:
NC
Product Type:
Solenoid Valve
Maximum Operating Temperature:
100°C
Inlet Port Size:
3/8 in
RoHs Compliant
Checking for live stock

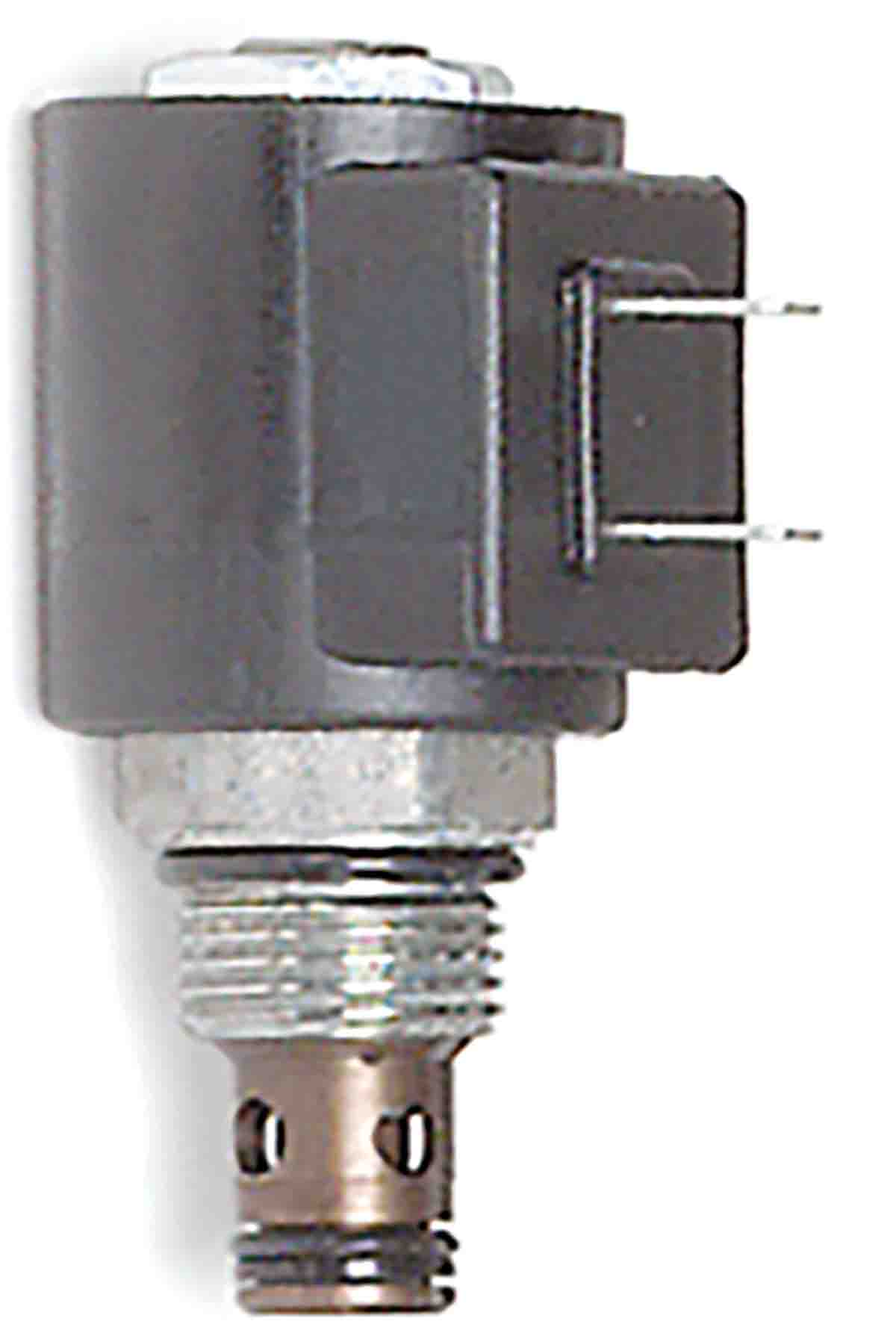

The HydraForce SV10-22-3B-N-230AG is a high-performance, 2-way, normally closed, poppet-type hydraulic solenoid valve designed for demanding industrial and mobile applications. This screw-in valve excels in load-holding and blocking tasks where minimal internal leakage is critical for system safety and efficiency. Featuring a robust 230V AC coil and an aluminium body with 3/8" BSP ports, it offers a reliable, continuous-duty solution for managing fluid flow in complex hydraulic circuits.

Reasons You Should Use the HydraForce SV10-22-3B-N-230AG Solenoid Valve

This solenoid valve ensures superior load-holding safety with virtually zero leakage in de-energised states. Its unitised coil and hardened seat provide long-lasting reliability in high-pressure environments.

  • Low internal leakage for precise load-holding control.
  • Continuous-duty rated coil for uninterrupted industrial operation.

Core Performance Features & Key Uses of the HydraForce Solenoid Valve

  • Key Performance Highlights:
  • Normally closed poppet design for fail-safe blocking.
  • Rated for pressures up to 240 bar (3500 psi).
  • Maximum flow capacity of 56.8 lpm (15 gpm).
  • Hardened seat and poppet for extended component life.
  • Efficient wet-armature construction for responsive switching.
  • Key Uses:
  • Load-holding in aerial lifts and construction equipment.
  • Hydraulic circuit blocking for industrial machinery.
  • Directional control in agricultural and forestry vehicles.
  • General-purpose fluid power management in manifold systems.

pdf icon
Datasheet - sv10-22(Technical Reference)
