FET Feature:
-
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 200°C (TJ)
Package / Case:
TO-247-4
Rds On (Max) @ Id, Vgs:
105mOhm @ 20A, 18V
Gate Charge (Qg) (Max) @ Vgs:
63 nC @ 18 V
Vgs(th) (Max) @ Id:
5V @ 1mA
REACH Status:
REACH Unaffected
edacadModel:

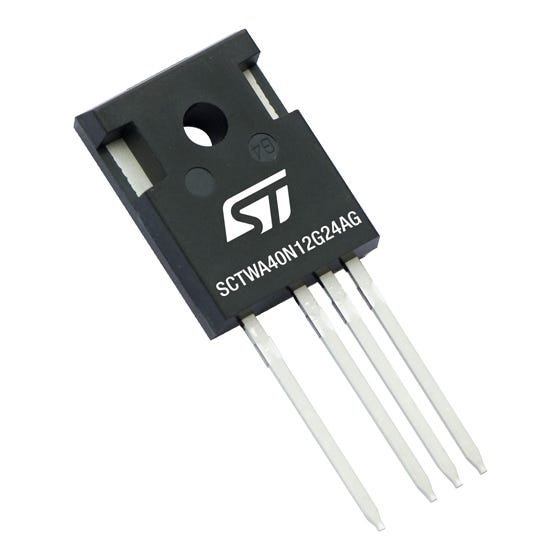

SCTWA40N12G24AG Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
18V
edacadModelUrl:
/en/models/22146764
Drain to Source Voltage (Vdss):
1200 V
Vgs (Max):
+22V, -10V
Qualification:
AEC-Q101
standardLeadTime:
32 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
1230 pF @ 800 V
Mounting Type:
Through Hole
Grade:
Automotive
Series:
-
Supplier Device Package:
TO-247-4
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
33A (Tc)
Power Dissipation (Max):
290W (Tc)
Technology:
MOSFET (Metal Oxide)
Automotive Standard:
AEC-Q101
Maximum Power Dissipation Pd:
290W
Maximum Drain Source Voltage Vds:
1200V
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
22 V
Series:
SCTWA40N12G24AG
Forward Voltage Vf:
3.4V
Channel Type:
Type N
Typical Gate Charge Qg @ Vgs:
63nC
Package Type:
Hip-247
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
105mΩ
Standards/Approvals:
AEC-Q101
Maximum Continuous Drain Current Id:
33A
Product Type:
MOSFET
Maximum Operating Temperature:
200°C
Pin Count:
4
Mount Type:
Through Hole
