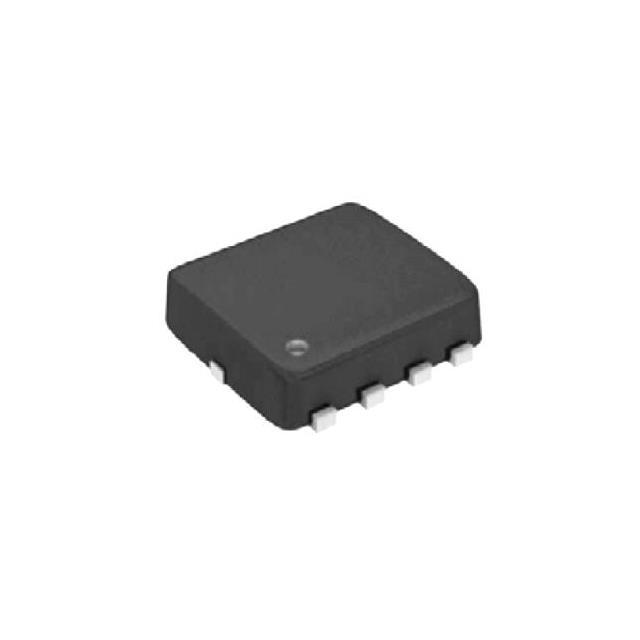

Good-Ark Semiconductor SSFN2603

SSFN2603 Good-Ark Semiconductor
Good-Ark Semiconductor

Product Information

FET Feature:
-
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
1V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-PowerVDFN
Rds On (Max) @ Id, Vgs:
8mOhm @ 8A, 4.5V
Gate Charge (Qg) (Max) @ Vgs:
80 nC @ 4.5 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
20 V
Vgs (Max):
±12V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
62.5W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
8000 F @ 15 V
standardLeadTime:
16 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-PPAK (3.1x3.05)
Current - Continuous Drain (Id) @ 25°C:
60A (Tc)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by Good-Ark Semiconductor. The manufacturer part number is SSFN2603. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 1v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-powervdfn. It has a maximum Rds On and voltage of 8mohm @ 8a, 4.5v. The maximum gate charge and given voltages include 80 nc @ 4.5 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 1.8v, 4.5v. It is shipped in tape & reel (tr) package . The product has a 20 v drain to source voltage. The maximum Vgs rate is ±12v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 62.5w (tc). The product's input capacitance at maximum includes 8000 f @ 15 v. It has a long 16 weeks standard lead time. The product is available in surface mount configuration. 8-ppak (3.1x3.05) is the supplier device package value. The continuous current drain at 25°C is 60a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.

pdf icon
SSFN2603(Datasheets)
