Dimensions:
10 x 5.65 x 6.5mm
Electrical Life:
10^5 Operations
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
178Ω
Life:
100000 (Electrical) Operations, 100000000 (Mechanical) Operations
Standards Met:
cULus E133481, RoHS Compliant
Coil Power:
140mW
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.6kV ac
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Maximum Switching Current AC:
2 A
Coil Voltage:
5V dc
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
SPDT
Depth:
6.5mm
Relay Switching Classification:
Subminiature Signal Relay
Features:
High Contact Capacity, Low Power Consumption
Mounting Type:
PCB Mount
Length:
10mm
Height:
5.65mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
60VA
Number of Poles:
2
Contact Material:
Gold Plated, Rhodium Plated Palladium Nickel

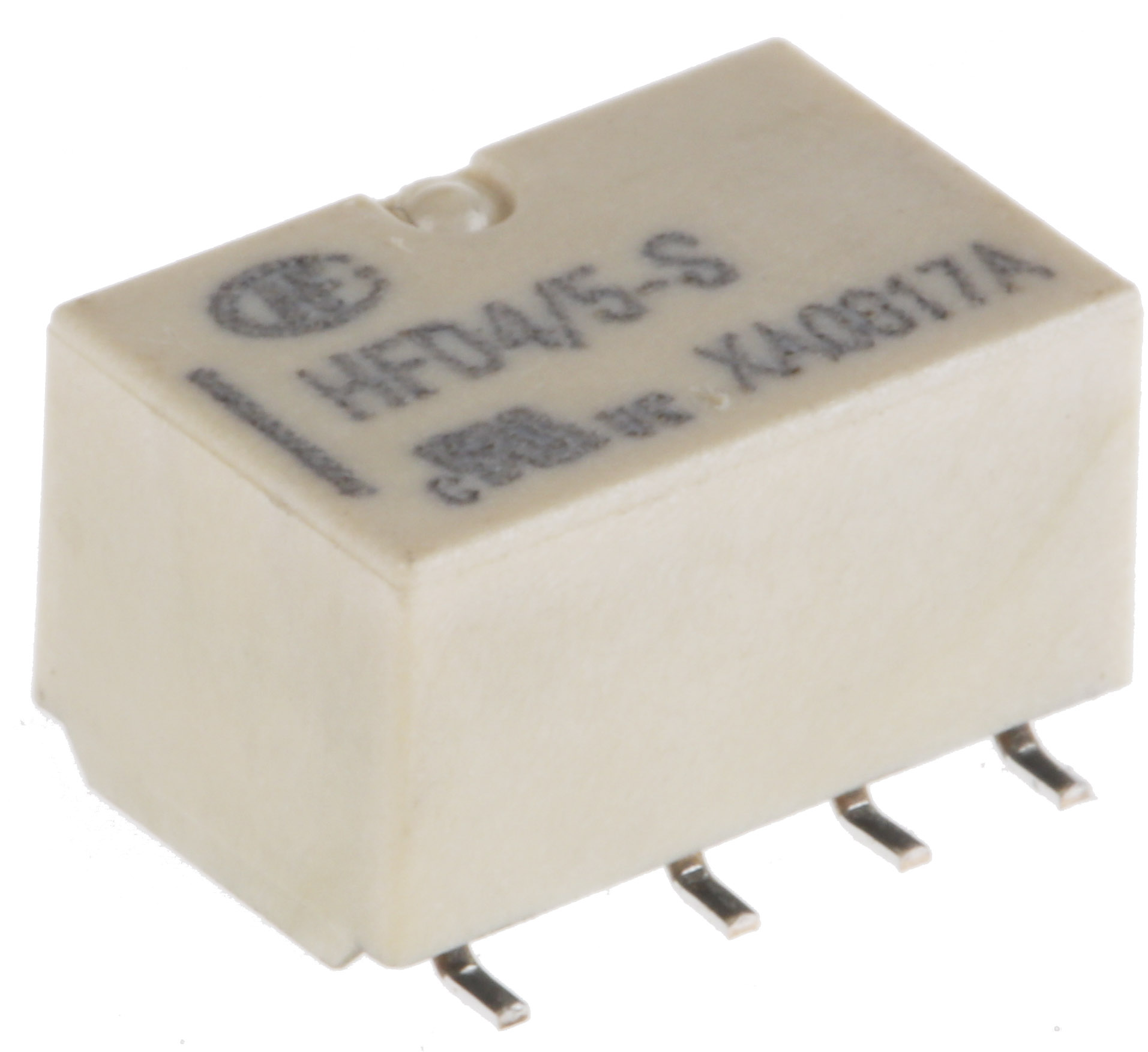

This is DPDT Non-Latching Relay PCB Mount 5V Coil 2 A Subminiature Signal Relay manufactured by RS Pro. The manufacturer part number is 800-4524. The given dimensions of the product include 10 x 5.65 x 6.5mm. The product offers long-lasting services of 10^5 operations. Applications Information involves signal. The terminal is a through hole type. It holds up to 178ω coil resistance. It is capable of doing 100000 (electrical) operations, 100000000 (mechanical) operations in a lifetime . The product complies with all safety standards, such as culus e133481, rohs compliant. Robust coil power of 140mw. While it carries 220v of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. The product has 1.6kv ac isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. It has a maximum 2 a switching current AC . The coil voltage of the product is 5v dc. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with spdt configuration. The product comes in 6.5mm depth. It has a subminiature signal relay switching relay configuration . The splendid features of the product include high contact capacity, low power consumption. The product is available in pcb mount configuration. Its accurate length is 10mm. In addition, the height is 5.65mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 60va. It has equipped with 2 poles. The product is made from sturdy gold plated, rhodium plated palladium nickel materials.
