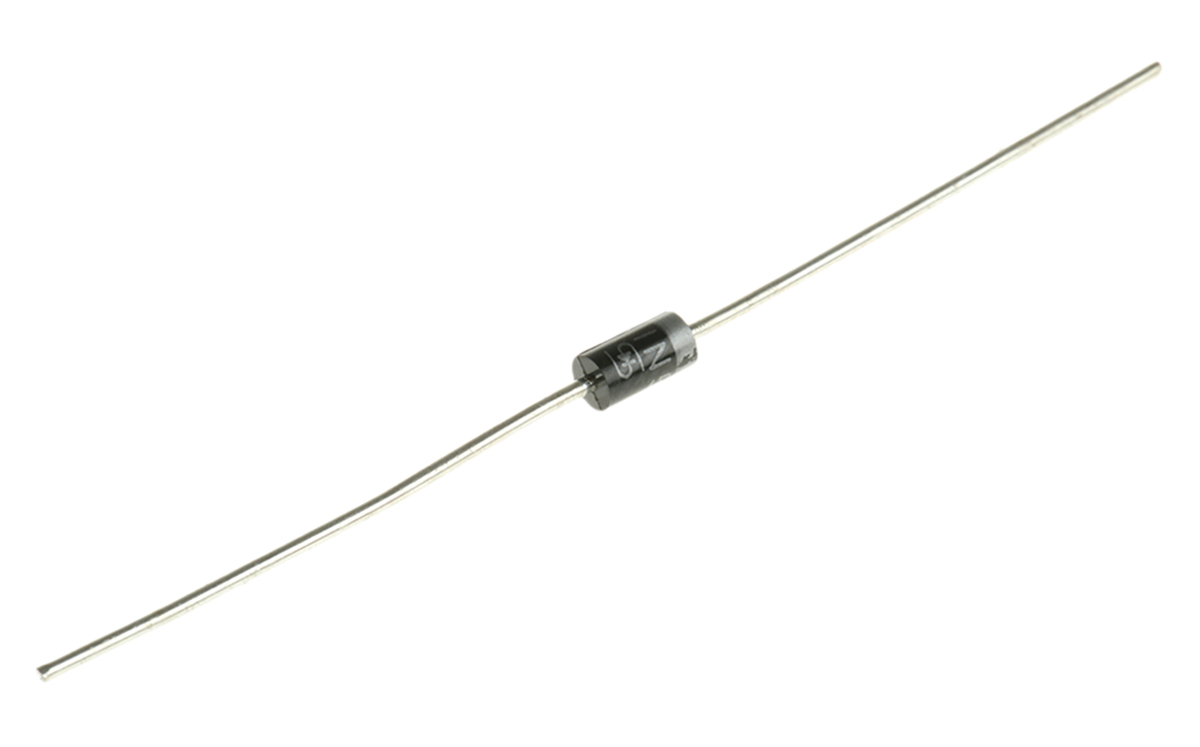

Taiwan Semi 20V 1A, Schottky Diode, 2-Pin DO-41 1N5817 R0

Enrgtech Part No: ET25558136
|
Manufacturer Part No:
1N5817
|
Manufacturer: Taiwan Semiconductor

1N5817 Taiwan Semi 20V 1A, Schottky Diode, 2-Pin DO-41 R0

Product Information

Diameter:

2.7mm

Mounting Type:

Through Hole

Diode Technology:

Schottky Barrier

Peak Non-Repetitive Forward Surge Current:

30A

Maximum Forward Voltage Drop:

750mV

Maximum Continuous Forward Current:

Rectifier Type:

Schottky Rectifier

Package Type:

DO-41

Number of Elements per Chip:

Diode Type:

Schottky

Diode Configuration:

Single

Pin Count:

Checking for live stock

The Taiwan Semiconductor 1N5817 is a high-performance Schottky barrier diode engineered for efficient power management and rapid switching applications. Housed in a compact 2-pin DO-41 package, this discrete semiconductor is designed for through-hole mounting, providing a secure, reliable connection on printed circuit boards. With a maximum continuous forward current of 1A and a peak reverse repetitive voltage of 20V, it serves as an essential component for low-voltage, high-frequency inverters and polarity protection circuits.

Unparalleled Benefits of Using the Taiwan Semiconductor 1N5817 Schottky Diode

Utilising this Schottky diode ensures superior energy efficiency due to its exceptionally low forward voltage drop of 750mV. This minimises power loss and heat generation, extending the lifespan of sensitive electronic assemblies while providing robust protection against transient surges with a 30A non-repetitive forward surge current capacity.

Standout Features & Suitable Environments of the 1N5817

Schottky Barrier Technology: Delivers ultra-fast switching speeds and minimal recovery time.
High Surge Capacity: Capable of handling peak non-repetitive currents up to 30A.
DO-41 Package: Standard axial lead design optimised for through-hole PCB assembly.
Low Power Dissipation: Features a low forward voltage drop to enhance circuit efficiency.

Suitable Environments: Ideal for use in power supplies, DC-DC converters, freewheeling diodes, and battery-operated handheld devices where thermal management is critical.
