Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Peak Reverse Recovery Time:
4ns
Maximum Forward Voltage Drop:
1V
Maximum Continuous Forward Current:
300mA
Rectifier Type:
General Purpose
Package Type:
SOD-523F
Number of Elements per Chip:
1
Diode Type:
Fast Switching Diode
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
75V
Reverse Recovery Time (trr):
4 ns
HTSUS:
8541.10.0070
RoHS Status:
ROHS3 Compliant
Package / Case:
SC-79, SOD-523F
edacadModel:
1N4448WT Models
Operating Temperature - Junction:
-55°C ~ 150°C
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/1954015
Current - Average Rectified (Io):
200mA
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
1 V @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
75 V
Capacitance @ Vr, F:
4pF @ 0V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
22 Weeks
Current - Reverse Leakage @ Vr:
5 µA @ 75 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOD-523F
Technology:
Standard
Base Product Number:
1N4448
ECCN:
EAR99

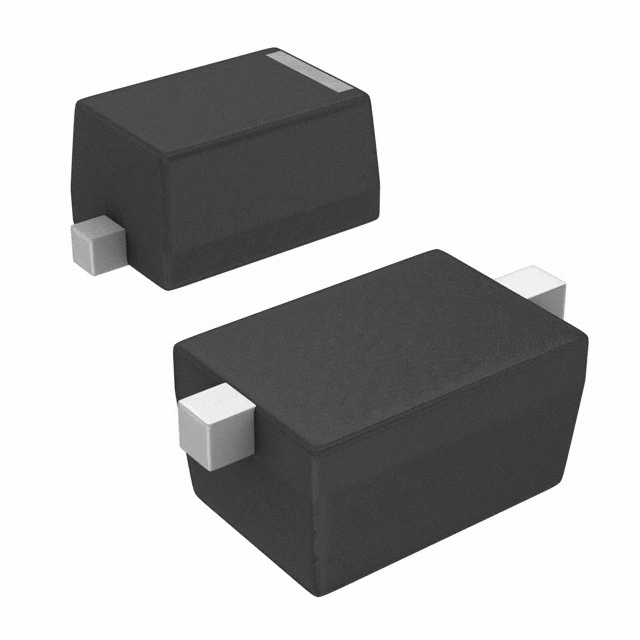

This is 75V 300mA Silicon Junction Diode 2-Pin SOD-523F manufactured by onsemi. The manufacturer part number is 1N4448WT. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, it has a peak reverse recovery time about 4ns . It features 1v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 300ma. This general purpose product is highly suited for various professionals in various settings. The package is a sort of sod-523f. It consists of 1 elements per chip. It is designed with a fast switching diode diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 75v. It has a trr (reverse recovery time) of 4 ns. It is assigned with possible HTSUS value of 8541.10.0070. The product is rohs3 compliant. Moreover, the product comes in sc-79, sod-523f. The product operate at temperatures ranging from -55°c ~ 150°c. In addition, it is reach unaffected. It features a 200ma of average rectified current. It has a robust speed of small signal =< 200ma (io), any speed. The product has a maximum forward voltage of 1 v @ 100 ma. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 75 v. Moreover, the product has a 4pf @ 0v, 1mhz capacitance. Its typical moisture sensitivity level is 1 (unlimited). It has a long 22 weeks standard lead time. 5 µa @ 75 v is the reverse leakage value of a bespoke product. sod-523f is the supplier device package value. This product use standard technology. Moreover, it corresponds to 1n4448, a base product number of the product. The product is designated with the ear99 code number.
