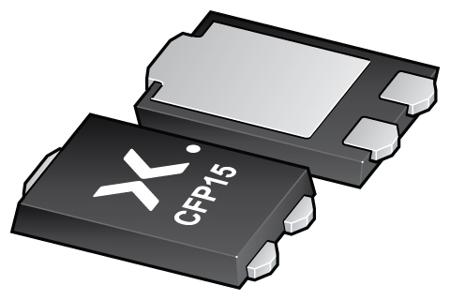

Nexperia PMEG100V080ELPDZ SMT Schottky Rectifier Schottky Diode, Common Cathode, 100V 11.2A, 2+Tab-Pin SOD-1289

PMEG100V080ELPDZ Nexperia SMT Schottky Rectifier Schottky Diode, Common Cathode, 100V 11.2A, 2+Tab-Pin SOD-1289
PMEG100V080ELPDZ Nexperia SMT Schottky Rectifier Schottky Diode, Common Cathode, 100V 11.2A, 2+Tab-Pin SOD-1289
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Peak Reverse Current Ir:
1.5mA
Maximum Operating Temperature:
175°C
Rectifier Type:
Schottky
Series:
PMEG
Peak Reverse Repetitive Voltage Vrrm:
100V
Maximum Continuous Forward Current If:
11.2A
Height:
0.78mm
Peak Reverse Recovery Time trr:
10ns
Width:
4.3 mm
Length:
5.8mm
Package Type:
SOD-1289
Minimum Operating Temperature:
-55°C
Maximum Forward Voltage Vf:
0.85V
Standards/Approvals:
AEC-Q101
Peak Non-Repetitive Forward Surge Current Ifsm:
160A
Product Type:
Schottky Barrier Rectifier
Diode Configuration:
Common Cathode
Pin Count:
2
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is SMT Schottky Rectifier Schottky Diode Common Cathode 100V 11.2A 2+Tab-Pin SOD-1289 manufactured by Nexperia. The manufacturer part number is PMEG100V080ELPDZ. The product complies with automotive standard - aec-q101. It has a maximum operating temperature of 175°c. This schottky product is highly suited for various professionals in various settings. The product pmeg, is a highly preferred choice for users. In addition, the height is 0.78mm. Furthermore, the product is 4.3 mm wide. Its accurate length is 5.8mm. The package is a sort of sod-1289. Whereas, the minimum operating temperature of the product is -55°c. schottky barrier rectifier is a versatile product designed to provide user-defined applications. The diode features a common cathode configuration. It contains 2 pins. It has a surface type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship PMEG100V080ELPDZ Internationally to many countries around the world.
Yes. You can also search PMEG100V080ELPDZ on website for other similar products.
We accept all major payment methods for all products including ET16800403. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800403 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800403.
You can order Nexperia brand products with PMEG100V080ELPDZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schottky Diodes & Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PMEG100V080ELPDZ SMT Schottky Rectifier Schottky Diode, Common Cathode, 100V 11.2A, 2+Tab-Pin SOD-1289. You can also check on our website or by contacting our customer support team for further order details on Nexperia PMEG100V080ELPDZ SMT Schottky Rectifier Schottky Diode, Common Cathode, 100V 11.2A, 2+Tab-Pin SOD-1289.
