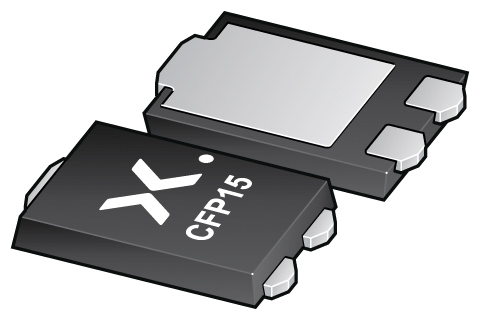

Nexperia PMEG045V100EPDAZ SMT Schottky Rectifier Schottky Diode, Common Cathode, 45V 14A, 2+Tab-Pin CFP-15

PMEG045V100EPDAZ Nexperia SMT Schottky Rectifier Schottky Diode, Common Cathode, 45V 14A, 2+Tab-Pin CFP-15
PMEG045V100EPDAZ Nexperia SMT Schottky Rectifier Schottky Diode, Common Cathode, 45V 14A, 2+Tab-Pin CFP-15
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Peak Reverse Current Ir:
600μA
Maximum Operating Temperature:
175°C
Rectifier Type:
Schottky
Series:
PMEG045V100EPD
Peak Reverse Repetitive Voltage Vrrm:
45V
Maximum Continuous Forward Current If:
14A
Height:
0.78mm
Peak Reverse Recovery Time trr:
37ns
Width:
4.3 mm
Length:
5.8mm
Package Type:
CFP15
Minimum Operating Temperature:
-55°C
Maximum Forward Voltage Vf:
490mV
Standards/Approvals:
RoHS
Peak Non-Repetitive Forward Surge Current Ifsm:
210A
Product Type:
Diode
Diode Configuration:
Common Cathode
Pin Count:
3
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is SMT Schottky Rectifier Schottky Diode Common Cathode 45V 14A 2+Tab-Pin CFP-15 manufactured by Nexperia. The manufacturer part number is PMEG045V100EPDAZ. The product complies with automotive standard - aec-q101. It has a maximum operating temperature of 175°c. This schottky product is highly suited for various professionals in various settings. The product pmeg045v100epd, is a highly preferred choice for users. In addition, the height is 0.78mm. Furthermore, the product is 4.3 mm wide. Its accurate length is 5.8mm. The package is a sort of cfp15. Whereas, the minimum operating temperature of the product is -55°c. diode is a versatile product designed to provide user-defined applications. The diode features a common cathode configuration. It contains 3 pins. It has a surface type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship PMEG045V100EPDAZ Internationally to many countries around the world.
Yes. You can also search PMEG045V100EPDAZ on website for other similar products.
We accept all major payment methods for all products including ET16800386. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800386 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800386.
You can order Nexperia brand products with PMEG045V100EPDAZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schottky Diodes & Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PMEG045V100EPDAZ SMT Schottky Rectifier Schottky Diode, Common Cathode, 45V 14A, 2+Tab-Pin CFP-15. You can also check on our website or by contacting our customer support team for further order details on Nexperia PMEG045V100EPDAZ SMT Schottky Rectifier Schottky Diode, Common Cathode, 45V 14A, 2+Tab-Pin CFP-15.
