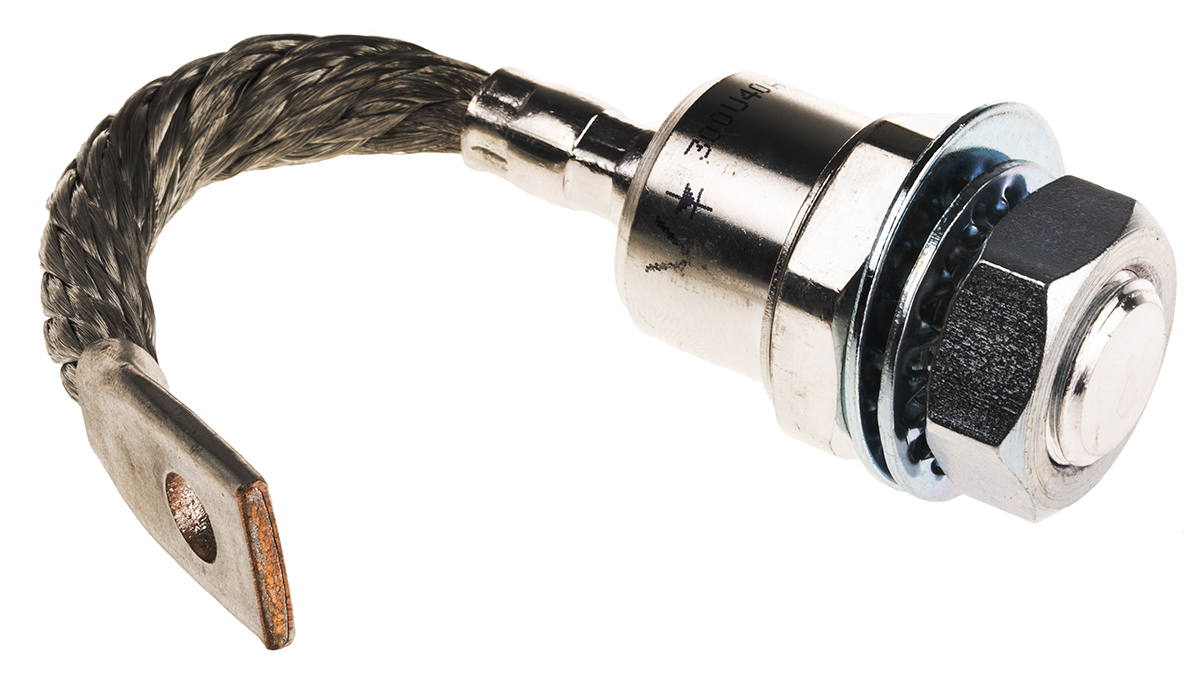

Vishay VS-300U40A Thread Mount Switching Diode, Stud Cathode, 400V 300A, 2-Pin DO-9

VS-300U40A Vishay Thread Mount Switching Diode, Stud Cathode, 400V 300A, 2-Pin DO-9
VS-300U40A Vishay Thread Mount Switching Diode, Stud Cathode, 400V 300A, 2-Pin DO-9
Vishay

Product Information

Automotive Standard:
No
Diameter:
27.94 mm
Peak Reverse Current Ir:
40mA
Maximum Operating Temperature:
200°C
Rectifier Type:
Recovery
Series:
VS-300U(R)
Peak Reverse Repetitive Voltage Vrrm:
400V
Maximum Continuous Forward Current If:
300A
Height:
182.44mm
Width:
31.75 mm
Length:
36.64mm
Package Type:
DO-9
Minimum Operating Temperature:
-65°C
Maximum Forward Voltage Vf:
1.4V
Standards/Approvals:
No
Peak Non-Repetitive Forward Surge Current Ifsm:
6850A
Product Type:
Standard Recovery Diode
Diode Configuration:
Stud Cathode
Pin Count:
2
Mount Type:
Screw
RoHs Compliant
Checking for live stock

This is Thread Mount Switching Diode Stud Cathode 400V 300A 2-Pin DO-9 manufactured by Vishay. The manufacturer part number is VS-300U40A. The product complies with automotive standard - no. Its diameter is 27.94 mm. It has a maximum operating temperature of 200°c. This recovery product is highly suited for various professionals in various settings. The product vs-300u(r), is a highly preferred choice for users. In addition, the height is 182.44mm. Furthermore, the product is 31.75 mm wide. Its accurate length is 36.64mm. The package is a sort of do-9. Whereas, the minimum operating temperature of the product is -65°c. standard recovery diode is a versatile product designed to provide user-defined applications. The diode features a stud cathode configuration. It contains 2 pins. It has a screw type mount .
