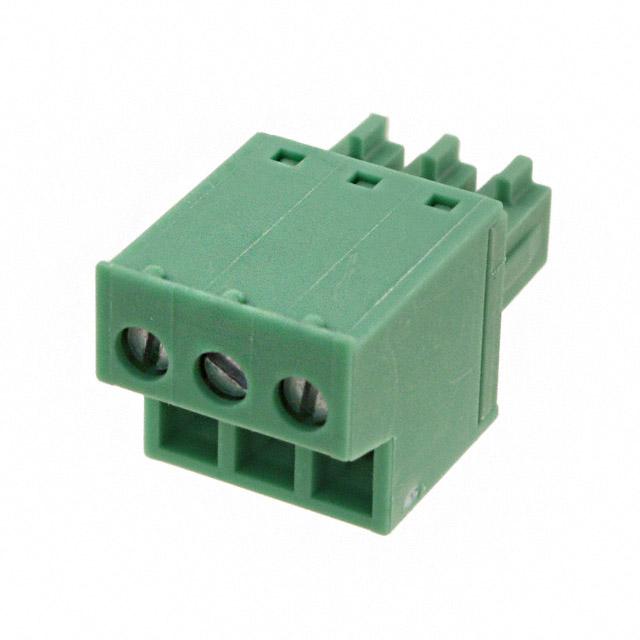

Phoenix Contact 1850673
Product Information
Series:
MINI COMBICON FRONT-MC
Current Rating:
8A
Mounting Type:
Cable Mount
Voltage Rating:
320 V
Gender:
Female
Colour:
Green
Material:
Polyamide
Length:
12.22mm
Termination Method:
Screw
Width:
21.7mm
Depth:
12.3mm
Number of Rows:
1
Pitch:
3.81mm
Number of Contacts:
3
Type:
Plug
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Pressure Clip
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2
Wire Strip Length:
9mm
Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.14-1.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.484" (12.30mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
16-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.22-0.25 Nm (1.9-2.2 Lb-In)
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON FRONT-MC
Positions Per Level:
3
Header Orientation:
-
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1850673 on website for other similar products.
We accept all major payment methods for all products including ET11502264. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1850673 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1850673. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1850673.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11502264 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11502264.
Yes. We ship 1850673 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1850673. The product mini combicon front-mc, is a highly preferred choice for users. The product has a current rating of 8a. The product is available in cable mount configuration. Moreover, the product has a nominal 320 v voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. The product is made from highly stable and reliable polyamide. Its accurate length is 12.22mm. It allows screw termination method. Furthermore, the product is 21.7mm wide. The product comes in 12.3mm depth. It comes in 1 of rows. Moreover, the product is 3.81mm. The product contains 3 contacts. It comes in plug configuration. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - pressure clip terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m2. The typical length of the wire strip is 9mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 0.14-1.5mm² of wire gauge. It also a 180° plug wire entry. 0.484" (12.30mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. While 16-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.22-0.25 nm (1.9-2.2 lb-in). It has a long 10 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon front-mc, is a highly preferred choice for users. It has 3 positions each level. The typical current includes 8 a. Moreover, the product is 0.150" (3.81mm). The product carries 1 levels. The product is designated with the ear99 code number.
