Name: AZ16-12ZVRK-M20-2254, Schmersal
Brand: Schmersal
SKU: ET16808393
Price: 51.29 GBP
Availability: InStock

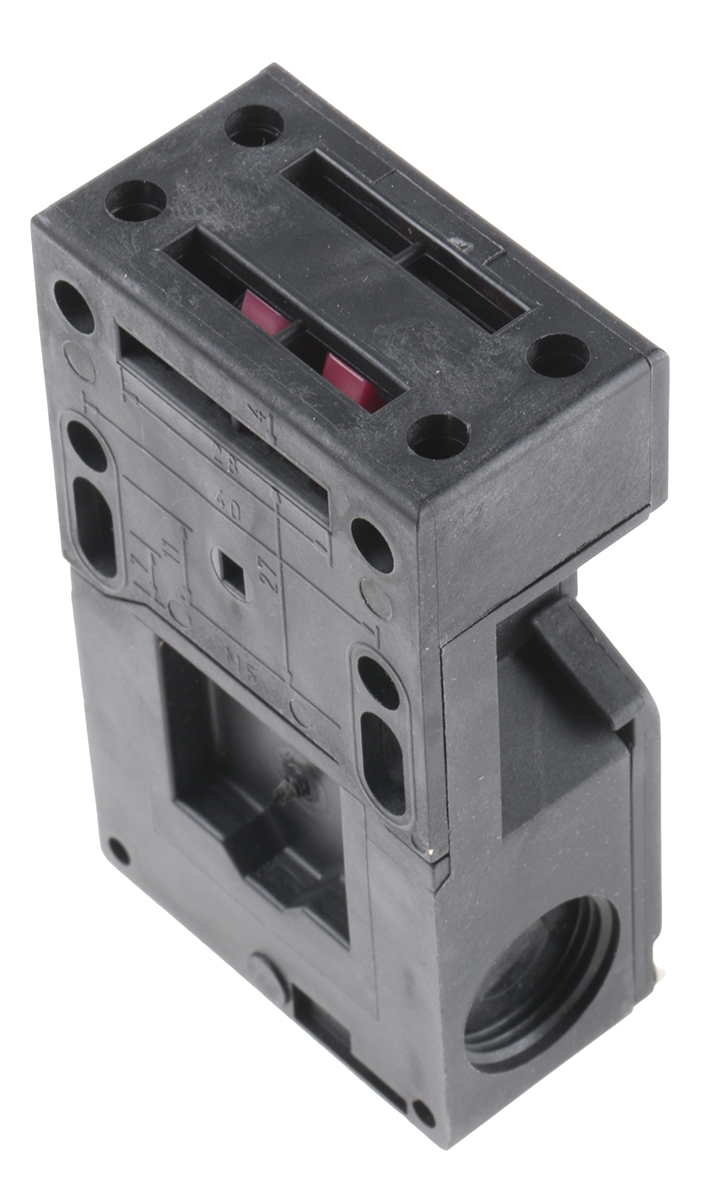

AZ16-12ZVRK-M20-2254 AZ16 Safety Interlock Switch, Fibreglass, 2NC/1NO

(0)

Product Information

Maximum DC Voltage:

24V

Maximum AC Voltage:

230V

Normal State Configuration:

2NC/1NO

Maximum Current:

IP Rating:

IP67

Lock Style:

Keyed

Series:

AZ16

Length:

90mm

Number of Head Directions:

Housing Material:

Glass Fibre Reinforced Thermoplastic

Width:

52mm

Depth:

30mm

Checking for live stock

The Schmersal AZ16-12ZVRK-M20-2254 is a robust electromechanical safety interlock switch designed to provide high-level protection for industrial machinery. Featuring a glass-fibre-reinforced thermoplastic enclosure and multiple contact configurations, this switch ensures movable safety guards remain closed until hazardous processes have ceased. Its compact, lightweight design and robust reliability make it an indispensable component for ensuring workplace safety and regulatory compliance in automated environments where machine-operator interaction is frequent.

Reasons You Should Use the Product

This Schmersal AZ16-12ZVRK-M20-2254 interlock switch offers superior durability and a long service life, ensuring consistent machine safety while significantly reducing maintenance-related downtime.

Double-insulated design for enhanced electrical safety.
Large wiring compartment simplifies the installation process.
Multiple coding levels prevent unauthorised tampering or bypass.

Core Performance Features & Key Uses

Designed for monitoring the position of sliding, hinged, or removable safety guards, this device provides a critical "break" in the control circuit when a gate is opened. It is widely used in conveyor systems, food processing lines, and material-handling equipment to prevent accidental injury from moving parts.

Technical Specifications
Contact Type: 1 NO (Normally Open) / 2 NC (Normally Closed).
Housing Material: Glass-fibre reinforced thermoplastic.
Cable Entry: M20 x 1.5.
IP Rating: IP67 (dust and water resistant).
Switching Principle: Creep action.
Suitable Environments
Humid or wet manufacturing areas.
Dust-heavy industrial workshops.
High-vibration machinery zones.

AZ15/AZ16 User Manual(Technical Reference)

Machine Guarding and Safety Range Overview(Technical Reference)

AZ 15/AZ 16 Mounting Instructions(Technical Reference)

AZ 16 Data Sheet(Technical Reference)
