Infineon EB 2ED2410 3M MOSFET Gate Driver for Gate Driver, Power MOSFET for Adjustable Wire Protection

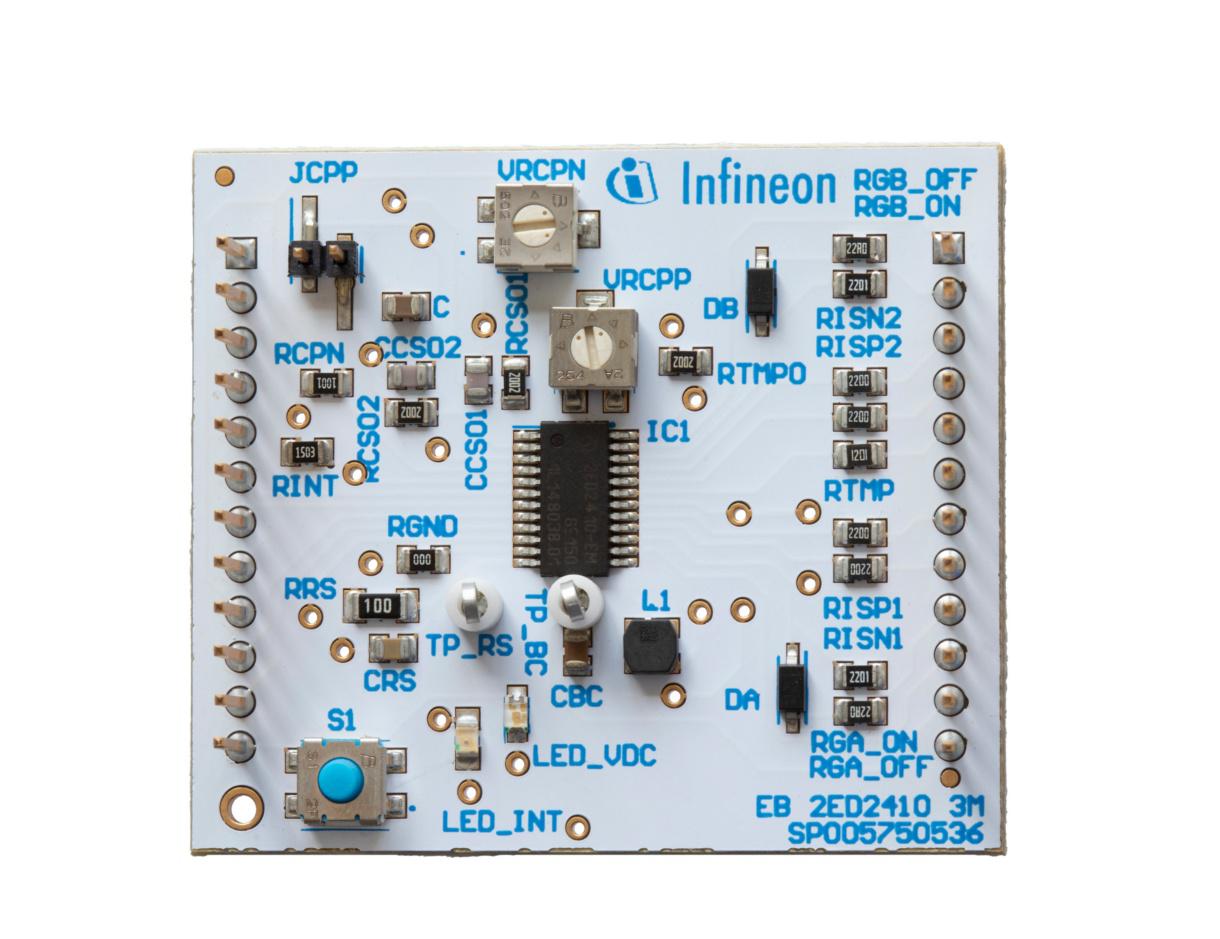

The Infineon EB2ED24103MTOBO1 is a high-grade evaluation board designed for professional testing of the ISO26262‑ready 2ED2410‑EM MOSFET gate driver within UK engineering workflows. With versatile compatibility, working with various daughterboards featuring OptiMOS 5 MOSFETs in back-to-back common‑source or drain configurations, including options with a pre‑charge path, this robust motherboard supports safe reset, diagnostics via LEDs, and streamlined prototyping for applications across the UK.

Why Should You Buy the Infineon High-grade Evaluation Board?

With built-in wire protection, fault LEDs, and reset capability, it elevates MOSFET gate‑driver testing to standards expected in UK safety-critical industries. Compatible with Infineon’s modular ecosystem, it allows UK engineers to safely evaluate MOSFET topologies, common-source, common-drain, or pre-charged without custom PCB setups, accelerating time-to-prototype and reducing risk.

Salient Features and Benefits Include

• Adjustable I‑t wire protection safeguards against overcurrent faults cleanly.
• Integrated low‑dropout regulator (OPTIREG TLE4296GV50) delivers stable 5 V logic power.
• Plug-and-play daughterboard system, including pre‑charge options, simplifies evaluation.
• The reset button allows a safe transition from fault states back to operational mode.
• Fully compatible with 12 V and 24 V automotive systems, matching UK industry standards.

Versatility in Applications

• Automotive electronic power distribution testing and development
• UK-focused industrial motor-drive and switching circuit evaluation
• Fail-safe and Intelligent Power Distribution Unit (iPDU) prototyping
• Educational and R&D use in electronics and power systems labs
• Smart-grid and renewable-power switching modules leveraging MOSFET control

For more information please check the datasheets.
