Infineon Arduino Shield Power PROFET 12V Evaluation Board for Power Switch for Power Distribution Box

Enrgtech Part No: ET26085517
|
Manufacturer Part No:
BOARDBTS500051LUATOBO1
|
Manufacturer: Infineon

BOARDBTS500051LUATOBO1 Infineon Arduino Shield Power PROFET 12V Evaluation Board for Power Switch for Power Distribution Box

Product Information

Power Management Function:

Evaluation Board

Kit Name:

Arduino Shield Power PROFET 12V

Featured Device:

Power Switch

Kit Classification:

Evaluation Board

For Use With:

Power Distribution Box

Checking for live stock

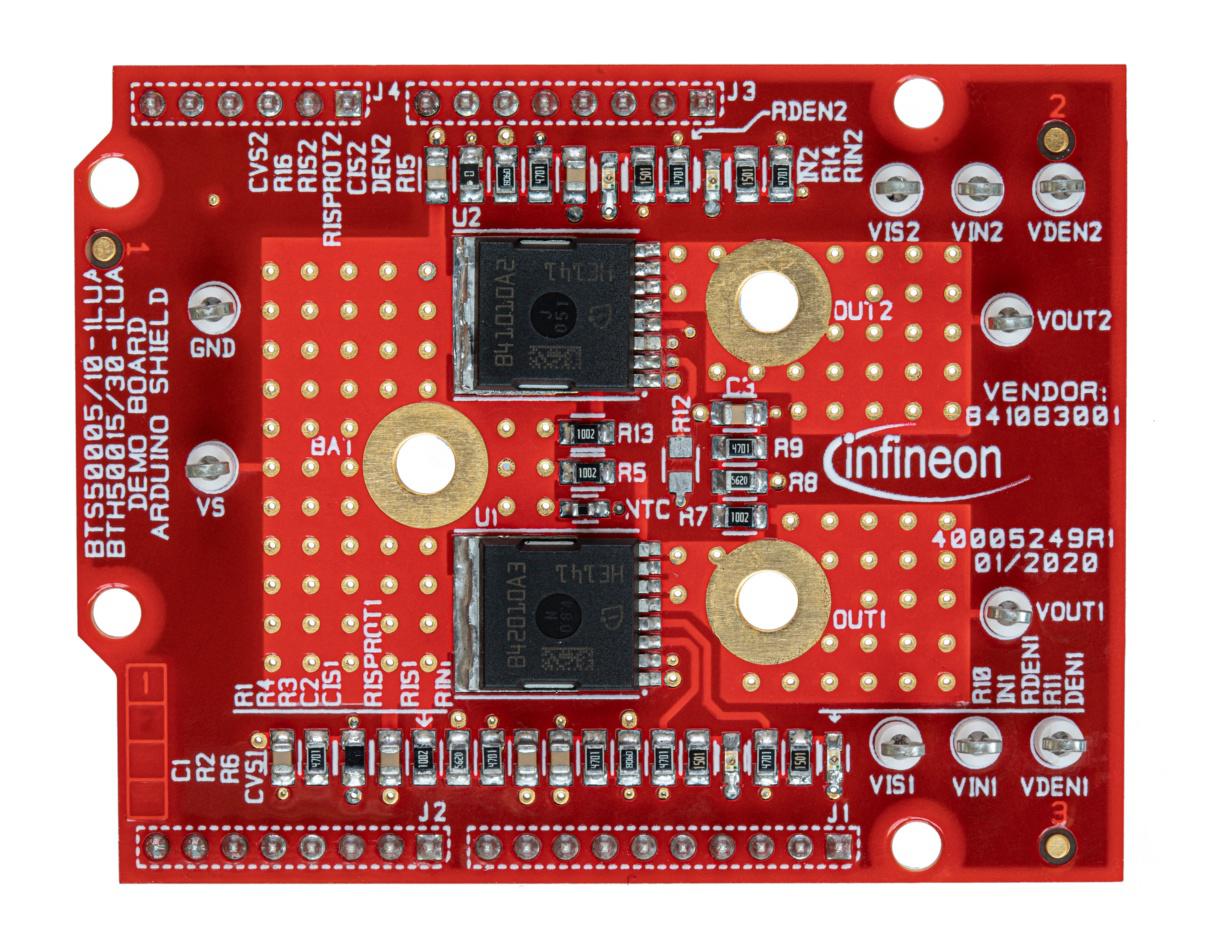

The Infineon BOARDBTS500051LUATOBO1 is an Arduino-compatible evaluation board designed for testing the BTS50005‑1LUA smart high‑side power switch, ideal for UK innovation in automotive, industrial, and power-management systems. Supporting 3.1 V to 28 V supplies and delivering up to 50 A continuous load between V_OUT and BAT, this shield simplifies real-world prototyping. It features current sensing, diagnostics via LEDs, an onboard NTC temperature sensor, and built-in over-current and over-temperature protection. Compatible with common platforms like Arduino UNO, DUE, and XMC1100, this board empowers UK engineers to validate switching performance safely and efficiently.

Advanced Features and Benefits of Buying the Infineon Arduino-Compatible Evaluation Board

Supports up to 50 A continuous load, perfect for high-power UK systems.
Includes over-temperature and over-current shutdown for safe testing.
Status LEDs and onboard NTC enable easy monitoring and thermal management.
Accepts 3.1 V to 28 V input, covering diverse application requirements.
Fits UNO, DUE, X and MC1100 boot kits, ideal for rapid integration and adoption.

Product Typical Uses

Automotive ECU power control, including start-stop systems and auxiliary circuits
Industrial control modules for valves, pumps, and motor drives
High-current heating systems, such as PTC elements or resistive heaters
Prototyping power distribution systems in smart buildings or industrial automation
Rapid testing of high-energy switching components in UK developers’ labs
