ON Semiconductor NCP45521IMNGEVB

Enrgtech Part No: ET14538787
|
Manufacturer Part No:
NCP45521IMNGEVB
|
Manufacturer: ON Semiconductor

Product Information

Power Management Function:

Load Switch

Kit Name:

Integrated Load Switch with Ultra-Low Ron, 11.5A, Evaluation Board

Featured Device:

NCP45521IMNTWG-H, NCP45521IMNTWG-L

Kit Classification:

Evaluation Board

For Use With:

Controlled Load Switch with Ultra-Low Ron

Function:

Power Distribution Switch (Load Switch)

Base Part Number:

NCP45521

Detailed Description:

NCP45521 Power Distribution Switch (Load Switch) Power Management Evaluation Board

Utilized IC / Part:

NCP45521

Customer Reference:

Manufacturer Standard Lead Time:

6 Weeks

Packaging:

Box

Checking for live stock

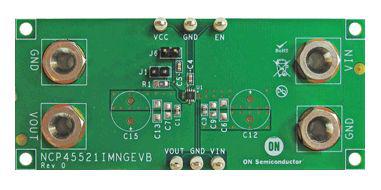

The ON Semiconductor NCP45521IMNGEVB is a high-performance evaluation platform designed to demonstrate the capabilities of the NCP45521 ecoSWITCH™ integrated load switch. This board enables engineers to test the ultra-low on-resistance and high-current handling of the silicon-proven load management solution. Featuring integrated power-good signalling and controlled slew rate, it provides a comprehensive environment for validating power distribution designs in space-constrained applications like notebooks, tablets, and portable electronics.

Reasons You Should Use the Product

This ON Semiconductor NCP45521IMNGEVB evaluation board simplifies the prototyping process by providing a ready-to-use circuit for high-efficiency power switching and load management.

Enables rapid validation of ultra-low Ron performance for reduced power loss.
Features an adjustable soft-start to prevent inrush current issues in sensitive systems.

Core Performance Features & Key Uses

The NCP45521IMNGEVB evaluation board is essential for developing power rails that require low-leakage isolation and precise power sequencing. It is primarily used in computing and handheld industrial devices where thermal efficiency and battery longevity are critical performance metrics.

Technical Specifications
Utilised IC: NCP45521 Integrated Load Switch
Input Voltage Range: 0.5 V to 13.5 V
Maximum Continuous Current: 11.5 A
On-Resistance: 11 mΩ (typical)
Interface: Power Good (PG) output and Enable (EN) input.
Suitable Environments
Power management labs for circuit prototyping
Consumer electronics manufacturing and R&D
Embedded system development for battery-operated tools
High-density PCB layout reference testing.

Datasheet(Technical Reference)

NCP45521IMNGEVB BOM(Design Resources)

NCP45521IMNGEVB Schematic(Design Resources)

NCP45521IMNGEVB Test Procedure(Datasheets)

NCP45520,21(Datasheets)
