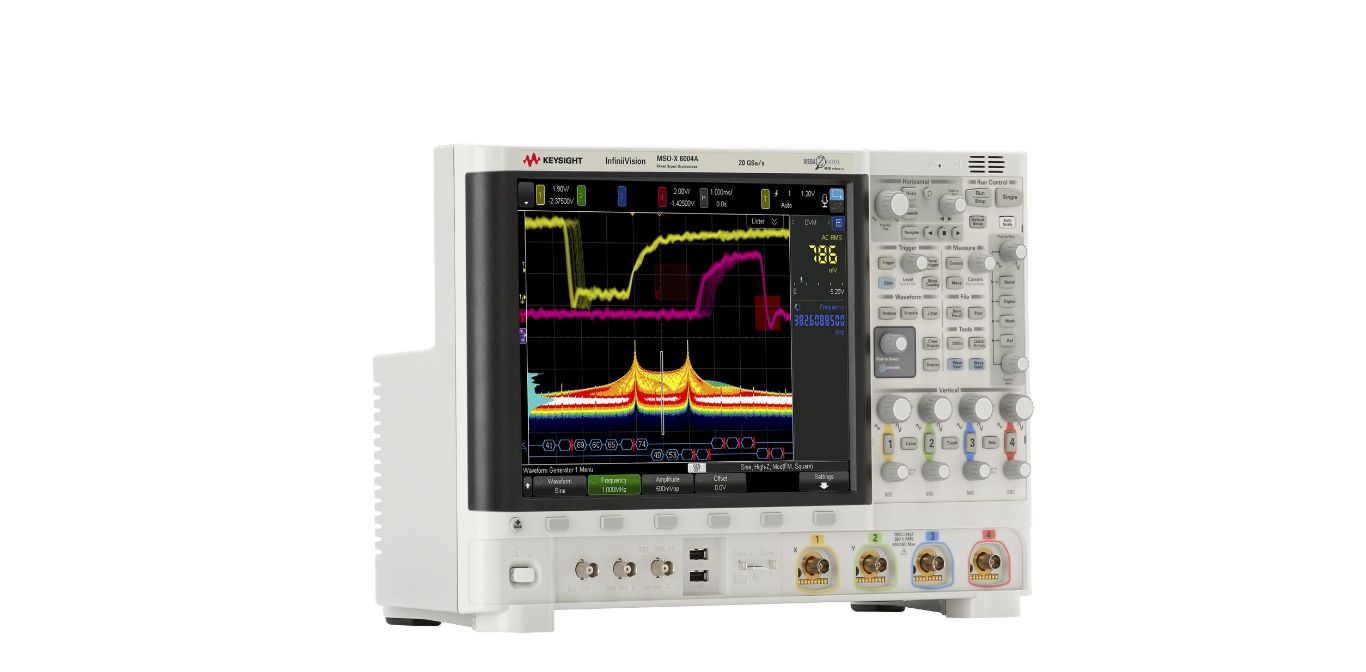

Keysight Technologies MSOX6004A, MSOX6004A Mixed Signal Oscilloscope, 1 6GHz, 4, 16 Analogue. Ch.

Enrgtech Part No: ET19370832
|
Manufacturer Part No:
MSOX6004A
|
Manufacturer: Keysight Technologies

MSOX6004A Keysight Technologies , Mixed Signal Oscilloscope, 1 6GHz, 4, 16 Analogue. Ch.

Product Information

Maximum Time Base:

50s/div

Power Source:

Mains

Minimum Time Base:

100ps/div

Oscilloscope Type:

Bench

Dimensions:

425 x 148 x 148mm

Digital/Analogue:

Digital

Sample Rate Random:

20 Gsps

Minimum Vertical Sensitivity:

1mV/div

Record Length:

4 (Analogue, Digital) M points/ch

Input Capacitance:

8 pF

Screen Size:

12.1in

Number of Digital Channels:

Checking for live stock

The Keysight Technologies MSOX6004A is a professional-grade 1 GHz mixed signal oscilloscope that sets a new standard for visualisation and integration in the InfiniiVision 6000 X-Series. Featuring 4 analogue and 16 digital channels, it offers a massive 12.1-inch capacitive multi-touch display with gesture control. Designed for demanding engineers, this portable benchtop oscilloscope delivers a staggering 450,000 waveforms-per-second update rate, ensuring that even the most elusive glitches and infrequent signal anomalies are captured with absolute precision.

Why Buy the Product?

The Keysight Technologies MSOX6004A digital oscilloscope combines seven instruments into a single portable unit, significantly reducing bench space while maximising sophisticated signal analysis capabilities.

Delivers industry-leading visualisation with a high update rate and unique Zone touch triggering.
Future-proofs your lab investment with fully upgradable bandwidth and versatile software application options.

Special Features

7-in-1 Integration: Combines an oscilloscope, logic analyser, protocol analyser, WaveGen, DVM, counter, and frequency response analyser.
Zone Touch Triggering: Allows users to isolate complex signals simply by drawing a box on the screen.
Low Noise Floor: Features a 115 µVrms noise floor at 1 mV/div for highly accurate low-level measurements.
Voice Control: Supports multi-language voice commands for hands-free operation during complex testing.
20 GSa/s Sample Rate: Captures high-speed signal details with a rise time of less than 350 ps.

Typical Environments

Embedded Design Labs: Essential for debugging complex mixed-signal circuits and serial bus protocols.
Manufacturing Test: Provides fast, automated measurements for high-volume electronic component production.
Research and Development: Used by engineers for signal integrity analysis, jitter testing, and power rail measurements.
Telecommunications: Perfect for analysing high-frequency data signals and verifying network hardware performance.
