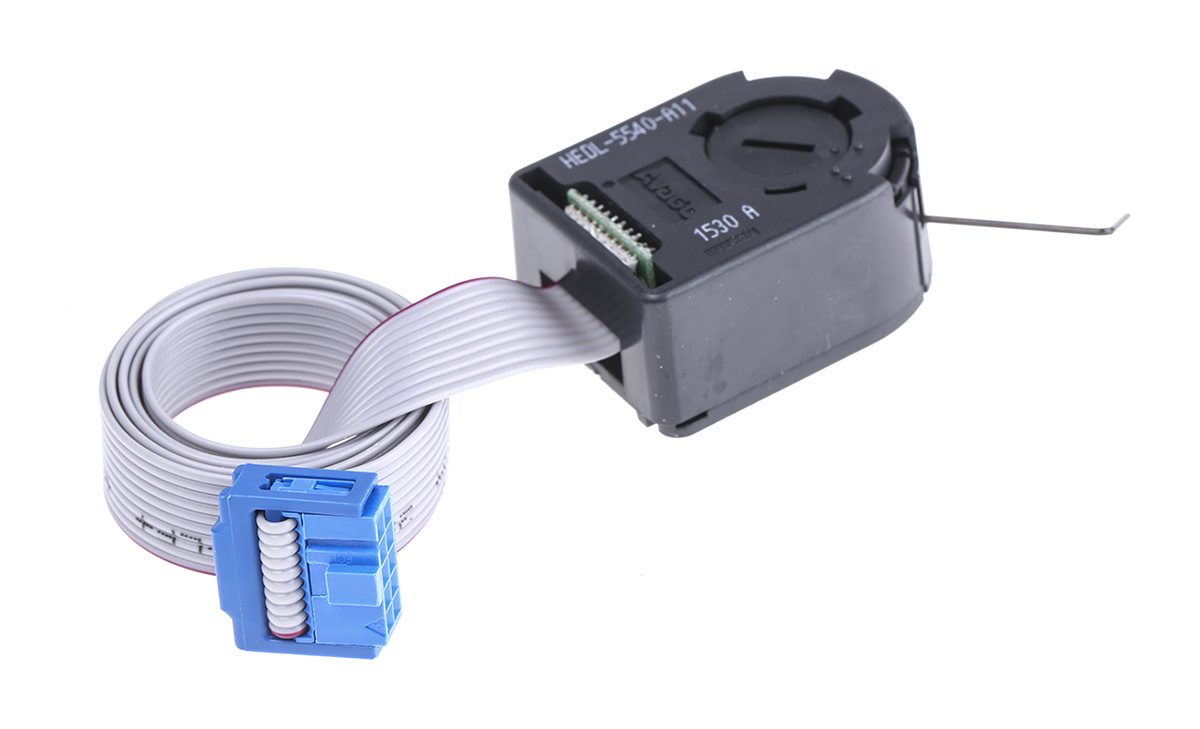

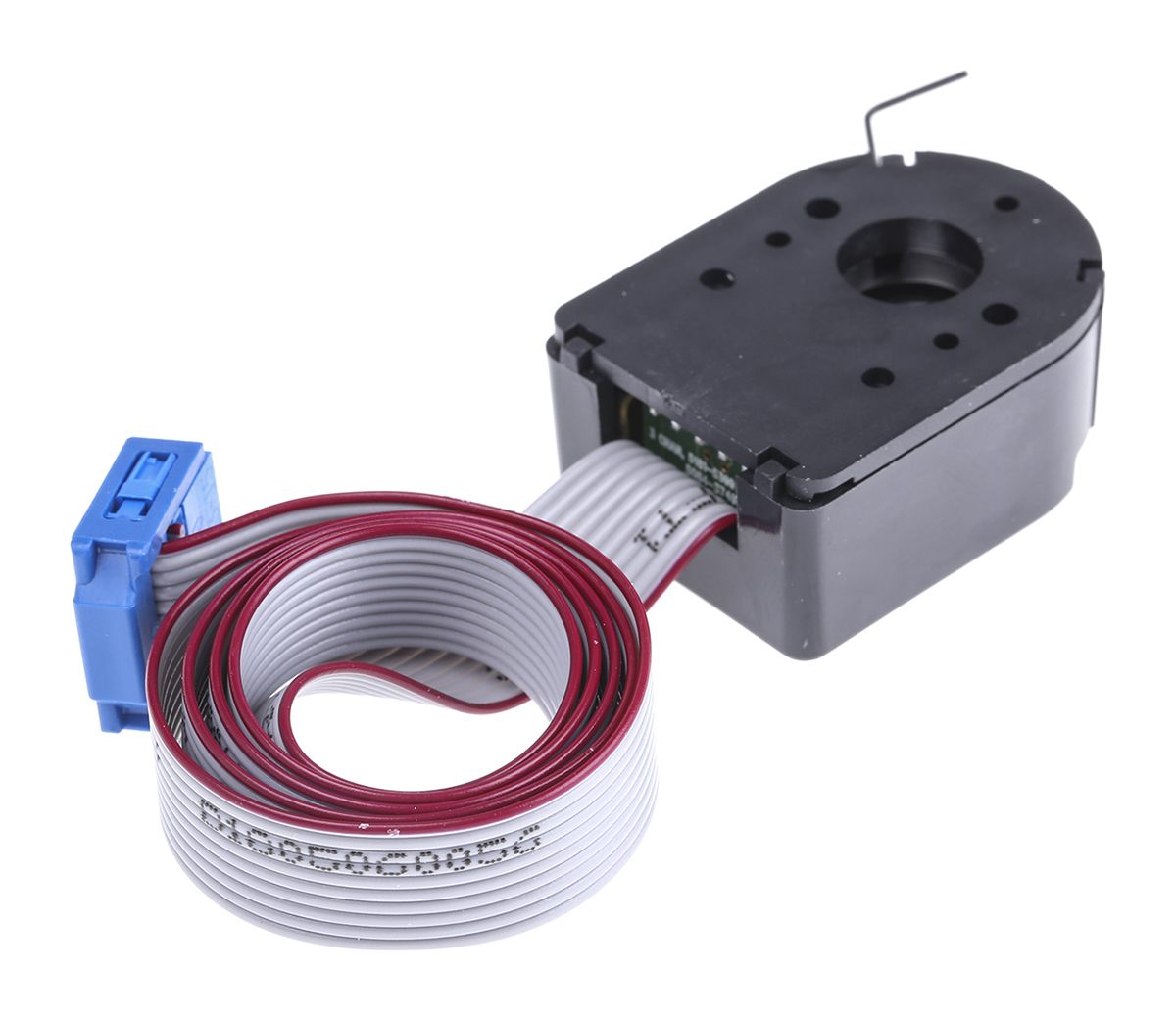

Broadcom Incremental Encoder 30000rpm Round 4.5 → 5.5 V dc

HEDL-5540-A11 Broadcom Incremental Encoder 30000rpm Round 4.5 → 5.5 V dc
HEDL-5540#A11
HEDL-5540-A11 Broadcom Incremental Encoder 30000rpm Round 4.5 → 5.5 V dc
Broadcom

Product Information

Maximum Operating Speed:
30000rpm
Shaft Diameter:
4mm
Current Rating:
5 mA
Pulses Per Revolution:
500ppr
Encoder Type:
Quadrature
Standards/Approvals:
RoHS 6
Supply Voltage:
5 V
Encoder Signal:
2 Channel Quadrature with Index Pulse
Product Type:
Optical Encoder
Automotive Standard:
No
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is Incremental Encoder 30000rpm Round 4.5 → 5.5 V dc manufactured by Broadcom. The manufacturer part number is HEDL-5540#A11. It has a maximum 30000rpm operating speed . The diameter of the shaft is 4mm. The product has a current rating of 5 ma. It exhibits 500ppr pulses per resolution . The product is quadrature encoder. Features 5 v supply voltage. It has a 2 channel quadrature with index pulse encoder signal . optical encoder is a versatile product designed to provide user-defined applications. The product complies with automotive standard - no. It has a through hole type mount .

pdf icon
HEDL-5540x, Encoder Line Driver(Technical Reference)
pdf icon
Incremental Optical Encoders - Datasheet(Technical Reference)
