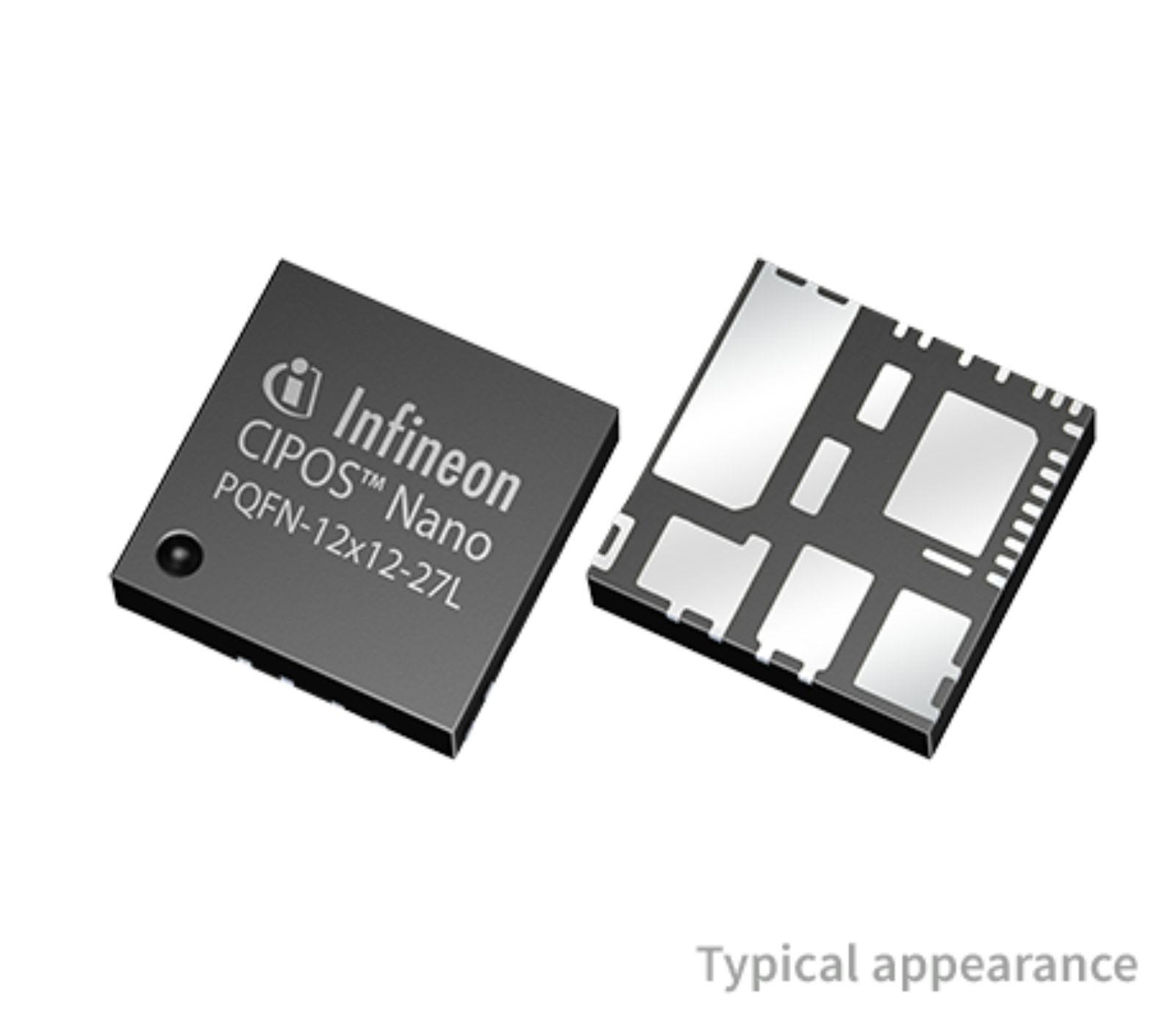

Infineon IRSM836-084MA

Enrgtech Part No: ET26071036
|
Manufacturer Part No:
IRSM836-084MA
|
Manufacturer: Infineon

Product Information

Motor Type:

3-Phase, Half-Bridge

Mounting Type:

Surface Mount

Maximum Collector Emitter Voltage:

250 V

Maximum Supply Voltage:

20 V

Package Type:

PQFN

Output Configuration:

3 Phase

Configuration:

Half Bridge

Maximum Output Current:

Pin Count:

Checking for live stock

The Infineon IRSM836 084MA is a compact, high efficiency 3 phase half bridge motor driver IC engineered for demanding embedded motor control applications. Housed in a surface mount PQFN package, this module delivers robust performance, supporting up to 250 V collector emitter voltage, 20 V supply, and 7 A maximum output current across three phases with a 32 pin footprint—all through Infineon’s trusted manufacturing quality. If you want a powerful yet space efficient solution for your motor drive needs, the IRSM836 084MA delivers precisely that.

Why You Should Consider This IRSM836-084MA Motor Driver IC?

You should consider the IRSM836 084MA because it offers a rare blend of rugged power handling, compact design, and essential protection features. Its ability to support high voltage and current levels within a miniaturised surface-mount package allows for more compact, energy-efficient, and reliable motor control systems—perfect for modern, space-constrained designs that don't compromise on performance.

Product Special Features Include:

Ultra compact surface mount PQFN package suitable for dense board layouts (3 phase output, 32 pins)
Supports high motor drive capability: up to 250 V and 7 A across three phases
Low RDS(on) Trench MOSFETs for efficient switching and thermal performance
Integrated bootstrap driver for simplified gate drive implementation
Embedded fault protection: overcurrent, under voltage lockout, and shutdown pin
Cross conduction prevention logic to minimise shoot through and improve efficiency
Optimised dV/dt control for balanced loss and EMI performance
Matched propagation delay across channels ensures smoother motor operation
Robust isolation—1500 VRMS for 1 minute—enables safer high voltage operation
No heat sink required: efficient power handling up to ~150 W motor power range.

Datasheet - IRSM836-084MA(Technical Reference)
