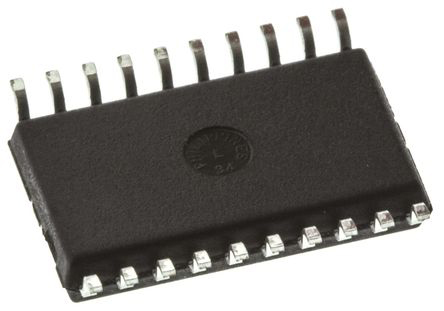

Renesas Electronics HIP4020IBZ, DC Motor Driver IC, 15 V 0.5A 20-Pin, SOIC W

HIP4020IBZ Renesas Electronics , DC Motor Driver IC, 15 V 0.5A 20-Pin, SOIC W
HIP4020IBZ
HIP4020IBZ Renesas Electronics , DC Motor Driver IC, 15 V 0.5A 20-Pin, SOIC W
Renesas Electronics

Product Information

Automotive Standard:
No
Product Type:
Motor Driver IC
Maximum Operating Temperature:
85°C
Configuration:
Half Bridge
Output Current:
0.5A
Maximum Supply Voltage:
15V
Series:
HIP4020
Maximum IGBT Collector Current:
0.5A
Height:
2.35mm
Width:
7.6 mm
Length:
13mm
Package Type:
SOIC
Minimum Operating Temperature:
-40°C
Minimum Supply Voltage:
3V
Standards/Approvals:
No
Maximum Collector Emitter Voltage Vceo:
15V
Motor Type:
DC Motor
Supply Current:
0.5A
Pin Count:
20
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is DC Motor Driver IC 15 V 0.5A 20-Pin SOIC W manufactured by Renesas Electronics. The manufacturer part number is HIP4020IBZ. The product complies with automotive standard - no. motor driver ic is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. The product is available in half bridge configuration. It carries 0.5a output current. The product requires a maximum 15v supply voltage . The product hip4020, is a highly preferred choice for users. It has a maximum 0.5a IGBT collector current . In addition, the height is 2.35mm. Furthermore, the product is 7.6 mm wide. Its accurate length is 13mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40°c. It has a minimum 3v supply voltage . This high-efficiency motor is a dc motor. It features 0.5a supply current. It contains 20 pins. It has a surface type mount .

pdf icon
HIP4020, Half Amp Full Bridge Power Driver for Small 3V, 5V and 12V DC Motors(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
