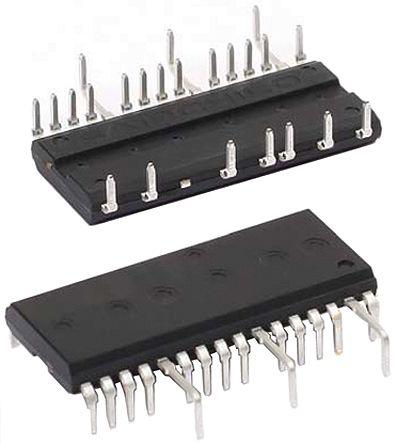

ON Semiconductor FSB50250A, AC Induction Motor Driver IC, 500 V 1.2A 23-Pin, PDIP

FSB50250A ON Semiconductor , AC Induction Motor Driver IC, 500 V 1.2A 23-Pin, PDIP
ON Semiconductor

Product Information

Dimensions:
29.2 x 12.2 x 3.3mm
Mounting Type:
Through Hole
Maximum Isolation Rating:
1500Vrms
Series:
Motion SPM 5 Series
Maximum Collector Emitter Voltage:
500 V
Maximum IGBT Collector Current:
1.2A
Height:
3.3mm
Width:
12.2mm
Length:
29.2mm
Package Type:
PDIP
Typical Switching Frequency:
15kHz
Minimum Operating Temperature:
-40 °C
Output Configuration:
3 Phase
Motor Type:
AC Induction
Maximum Operating Temperature:
+150 °C
Pin Count:
23
Maximum Operating Supply Voltage:
400 V
RoHs Compliant
Checking for live stock

This is AC Induction Motor Driver IC 500 V 1.2A 23-Pin PDIP manufactured by ON Semiconductor. The manufacturer part number is FSB50250A. The given dimensions of the product include 29.2 x 12.2 x 3.3mm. The product is available in through hole configuration. It has a maximum 1500vrms isolation rating . The product motion spm 5 series, is a highly preferred choice for users. Whereas features a 500 v of collector emitter voltage (max). It has a maximum 1.2a IGBT collector current . In addition, the height is 3.3mm. Furthermore, the product is 12.2mm wide. Its accurate length is 29.2mm. The package is a sort of pdip. It has a typical 15khz switching frequency . Whereas, the minimum operating temperature of the product is -40 °c. It boasts 3 phase output configuration. This high-efficiency motor is a ac induction. It has a maximum operating temperature of +150 °c. It contains 23 pins. It has 400 v maximum operating supply voltage.

pdf icon
FSB50250A, Motion SPM (Smart Power Modules) 5 Series(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
