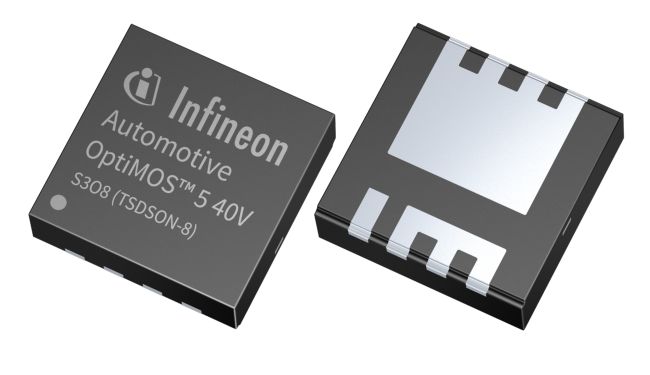

Silicon N-Channel MOSFET, 20 A, 40 V, 8-Pin PQFN 3.3 x 3.3 Infineon IPZ40N04S53R1ATMA1

IPZ40N04S53R1ATMA1 Silicon N-Channel MOSFET, 20 A, 40 V, 8-Pin PQFN 3.3 x 3.3 Infineon
IPZ40N04S53R1ATMA1 Silicon N-Channel MOSFET, 20 A, 40 V, 8-Pin PQFN 3.3 x 3.3 Infineon
Infineon

Product Information

Forward Voltage Vf:
1.1V
Width:
3.3 mm
Automotive Standard:
AEC-Q101
Typical Gate Charge Qg @ Vgs:
31nC
Package Type:
PQFN
Maximum Continuous Drain Current Id:
20A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
3.1mΩ
Maximum Operating Temperature:
175°C
Maximum Drain Source Voltage Vds:
40V
Channel Type:
Type N
Length:
3.3mm
Standards/Approvals:
RoHS
Pin Count:
8
Mount Type:
Surface
Maximum Power Dissipation Pd:
71W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
IPZ
Height:
1.05mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Silicon N-Channel MOSFET 20 A 40 V 8-Pin PQFN 3.3 x 3.3 manufactured by Infineon. The manufacturer part number is IPZ40N04S53R1ATMA1. Furthermore, the product is 3.3 mm wide. The product complies with automotive standard - aec-q101. The package is a sort of pqfn. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. The product is available in [Cannel Type] channel. Its accurate length is 3.3mm. It contains 8 pins. It has a surface type mount . The product carries enhancement channel mode. The product ipz, is a highly preferred choice for users. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - IPZ40N04S53R1ATMA1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IPZ40N04S53R1ATMA1 Internationally to many countries around the world.
Yes. You can also search IPZ40N04S53R1ATMA1 on website for other similar products.
We accept all major payment methods for all products including ET21647452. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21647452 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21647452.
You can order Infineon brand products with IPZ40N04S53R1ATMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Silicon N-Channel MOSFET, 20 A, 40 V, 8-Pin PQFN 3.3 x 3.3 Infineon IPZ40N04S53R1ATMA1. You can also check on our website or by contacting our customer support team for further order details on Silicon N-Channel MOSFET, 20 A, 40 V, 8-Pin PQFN 3.3 x 3.3 Infineon IPZ40N04S53R1ATMA1.
