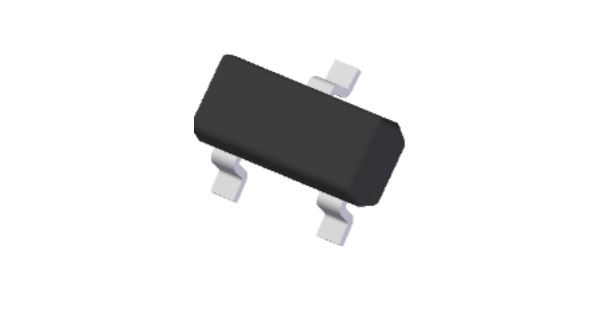

Plastic N-Channel MOSFET, 292 mA, 60 V, 3-Pin SOT-23 Diodes Inc 2N7002EQ-7-F

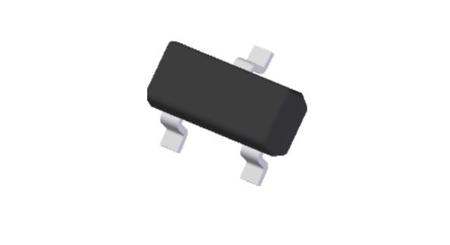

2N7002EQ-7-F Plastic N-Channel MOSFET, 292 mA, 60 V, 3-Pin SOT-23 Diodes Inc
2N7002EQ-7-F Plastic N-Channel MOSFET, 292 mA, 60 V, 3-Pin SOT-23 Diodes Inc
DiodesZetex

Product Information

Forward Voltage Vf:
1.5V
Width:
1.4 mm
Automotive Standard:
AEC-Q101
Typical Gate Charge Qg @ Vgs:
0.5nC
Package Type:
SOT-23
Maximum Continuous Drain Current Id:
292mA
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
3Ω
Maximum Operating Temperature:
150°C
Maximum Drain Source Voltage Vds:
60V
Channel Type:
Type N
Length:
3mm
Standards/Approvals:
No
Pin Count:
3
Mount Type:
Surface
Maximum Power Dissipation Pd:
0.7W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
2N7002
Height:
1.1mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Plastic N-Channel MOSFET 292 mA 60 V 3-Pin SOT-23 Diodes Inc manufactured by DiodesZetex. The manufacturer part number is 2N7002EQ-7-F. Furthermore, the product is 1.4 mm wide. The product complies with automotive standard - aec-q101. The package is a sort of sot-23. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. The product is available in [Cannel Type] channel. Its accurate length is 3mm. It contains 3 pins. It has a surface type mount . The product carries enhancement channel mode. The product 2n7002, is a highly preferred choice for users. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - 2N7002EQ-7-F(Technical Reference)
