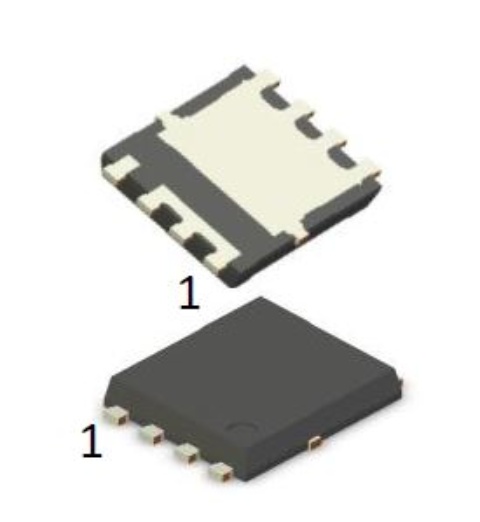

Dual N-Channel MOSFET Transistor & Diode, 100 A, 40 V, 8-Pin PG-TDSON Infineon IPC100N04S5L1R1ATMA1

IPC100N04S5L1R1ATMA1 Dual N-Channel MOSFET Transistor & Diode, 100 A, 40 V, 8-Pin PG-TDSON Infineon
IPC100N04S5L1R1ATMA1 Dual N-Channel MOSFET Transistor & Diode, 100 A, 40 V, 8-Pin PG-TDSON Infineon
Infineon

Product Information

Forward Voltage Vf:
1.1V
Width:
5.58 mm
Automotive Standard:
AEC-Q101
Typical Gate Charge Qg @ Vgs:
105nC
Package Type:
TDSON
Maximum Continuous Drain Current Id:
100A
Product Type:
MOSFET & Diode
Maximum Drain Source Resistance Rds:
1.1mΩ
Maximum Operating Temperature:
175°C
Maximum Drain Source Voltage Vds:
40V
Channel Type:
Type N
Length:
5.25mm
Standards/Approvals:
No
Pin Count:
8
Mount Type:
Surface
Maximum Power Dissipation Pd:
150W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
16 V
Series:
OptiMOS 5
Height:
1.1mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Dual N-Channel MOSFET Transistor & Diode 100 A 40 V 8-Pin PG-TDSON manufactured by Infineon. The manufacturer part number is IPC100N04S5L1R1ATMA1. Furthermore, the product is 5.58 mm wide. The product complies with automotive standard - aec-q101. The package is a sort of tdson. mosfet & diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. The product is available in [Cannel Type] channel. Its accurate length is 5.25mm. It contains 8 pins. It has a surface type mount . The product carries enhancement channel mode. The product optimos 5, is a highly preferred choice for users. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - IPC100N04S5L1R1ATMA1(Technical Reference)
