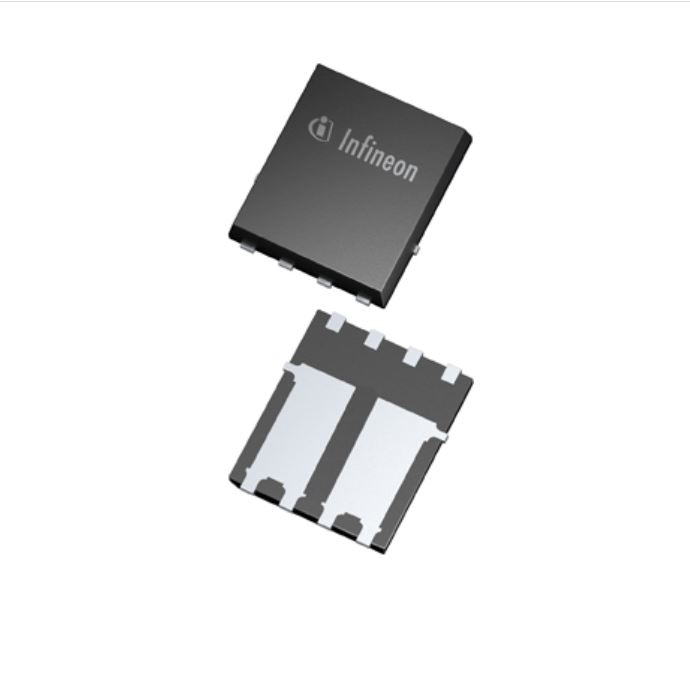

Dual N-Channel MOSFET, 20 A, 100 V, 8-Pin PG-TDSON-8-10 Infineon IPG20N10S436AATMA1

IPG20N10S436AATMA1 Dual N-Channel MOSFET, 20 A, 100 V, 8-Pin PG-TDSON-8-10 Infineon
IPG20N10S436AATMA1 Dual N-Channel MOSFET, 20 A, 100 V, 8-Pin PG-TDSON-8-10 Infineon
Infineon

Product Information

Forward Voltage Vf:
1V
Width:
5.9 mm
Maximum Drain Source Resistance Rds:
36mΩ
Automotive Standard:
AEC-Q101
Transistor Configuration:
Dual
Typical Gate Charge Qg @ Vgs:
9.4nC
Package Type:
TDSON
Number of Elements per Chip:
2
Maximum Continuous Drain Current Id:
20A
Product Type:
Power Transistor
Maximum Operating Temperature:
175°C
Maximum Drain Source Voltage Vds:
100V
Channel Type:
Type N
Length:
5.15mm
Standards/Approvals:
AEC Q101, RoHS
Pin Count:
8
Mount Type:
Surface
Maximum Power Dissipation Pd:
43W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
OptiMOS-T2
Height:
1mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Dual N-Channel MOSFET 20 A 100 V 8-Pin PG-TDSON-8-10 manufactured by Infineon. The manufacturer part number is IPG20N10S436AATMA1. Furthermore, the product is 5.9 mm wide. The product complies with automotive standard - aec-q101. The product offers dual transistor configuration. The package is a sort of tdson. It consists of 2 elements per chip. power transistor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. The product is available in [Cannel Type] channel. Its accurate length is 5.15mm. It contains 8 pins. It has a surface type mount . The product carries enhancement channel mode. The product optimos-t2, is a highly preferred choice for users. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - IPG20N10S436AATMA1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IPG20N10S436AATMA1 Internationally to many countries around the world.
Yes. You can also search IPG20N10S436AATMA1 on website for other similar products.
We accept all major payment methods for all products including ET21617606. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21617606 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21617606.
You can order Infineon brand products with IPG20N10S436AATMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Dual N-Channel MOSFET, 20 A, 100 V, 8-Pin PG-TDSON-8-10 Infineon IPG20N10S436AATMA1. You can also check on our website or by contacting our customer support team for further order details on Dual N-Channel MOSFET, 20 A, 100 V, 8-Pin PG-TDSON-8-10 Infineon IPG20N10S436AATMA1.
